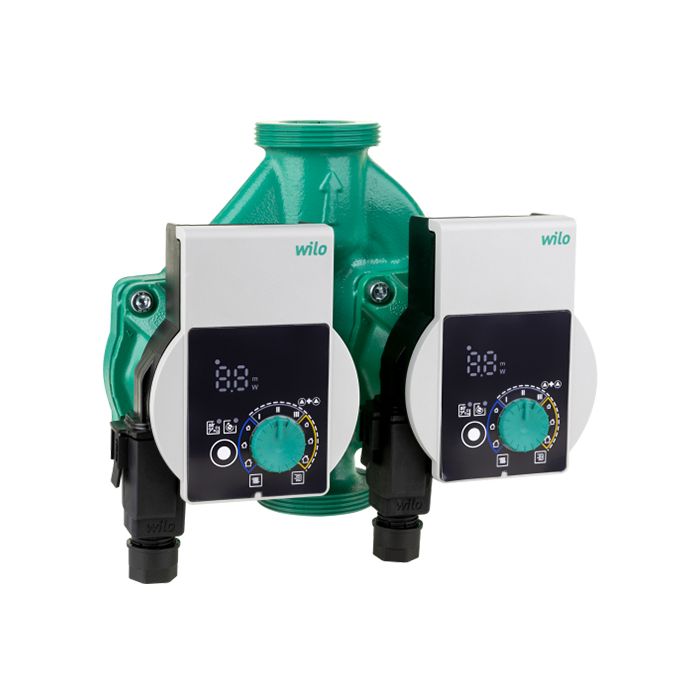

Wilo Yonos PICO-D 30/1-8 180 (ROW) Twin Head Circulating Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Wilo Yonos PICO-D 30/1-8 180 (ROW) Twin Head Circulating Pump 240v - 4230949
High-efficiency pump WILO-Yonos PICO-D, electronically controlled. Glandless twin-head pump with screwed connection, blocking-current proof
synchronous motor according to ECM technology and built-in electronic performance control for variable differential pressure control.
Can be used for all heating and air-conditioning applications.
Control mode can be selected in accordance with the radiator/underfloor heating application.
Each pump can be operated in individual operation (main/standby operation) or both pumps can be operated at the same time in parallel operation
(parallel/peak-load operation).
For an automatic fault-actuated switchover, a corresponding switchgear must be provided on-site.
Standard-equipped with:

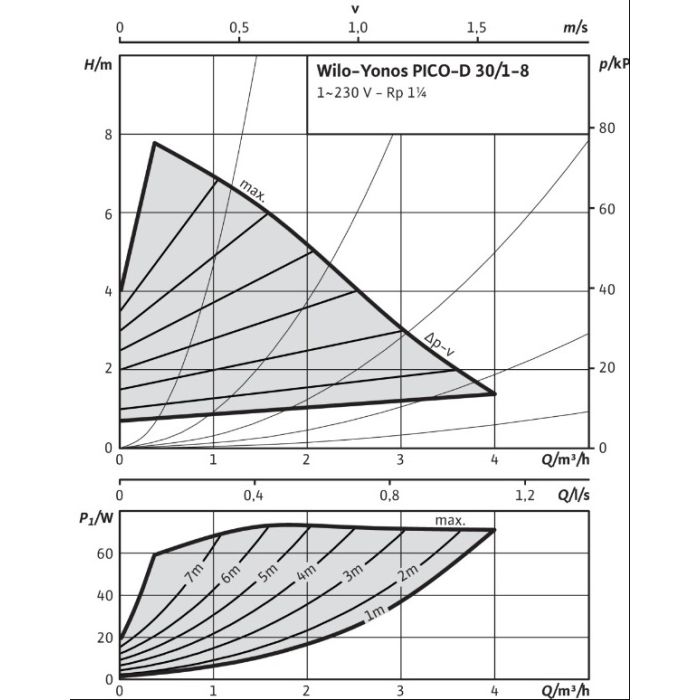

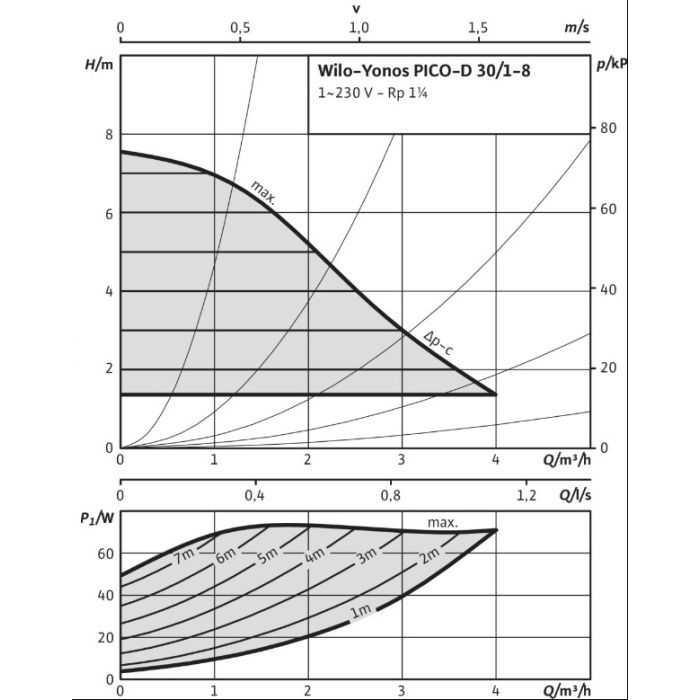

Preselectable control modes for optimum load adjustment: Differential pressure constant (Δp-c), differential pressure variable (Δp-v), constant speed
(3 pump curves)
Integrated motor protection
LED for setting the setpoint, displaying the current consumption in watts and the flow rate in m³/h
Automatic deblocking function
Manual pump venting function for venting the rotor chamber
Manual restart
| SKU | 4230949 |
|---|---|
| Manufacturers | Wilo |
| Manufacturers Warranty | 5 Years |
| Weight | 5.0 Kg |
| Connection Type | 2 Inch BSP |
| Motor Size | 3-75watt |
| Full Load Current (FLC) | 0.7A Rated Current |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 4.0m3/hr |
| Max Head | 7.5mtr |
| Max Temperature | 95oC |
| Material | Cast Iron |
| Impeller Material | PP-GF40 |
