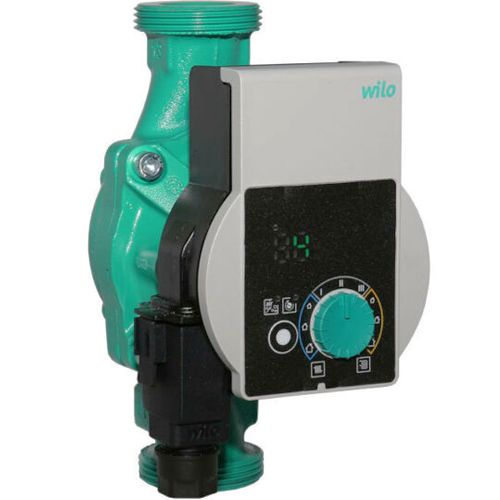

Wilo Yonos PICO 25/1-8 130 (ROW) Single Head Circulating Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Your advantages
Maximum operating convenience owing to the Green Button Technology
with new, intelligent settings, intuitive user interface and new functions
Optimised energy efficiency owing to EC motor technology, settings with
an accuracy of 0.1 m, display of current power consumption and flow rate
Quick and easy installation and smooth replacement owing to the new,
optimised construction
Easy maintenance and high degree of operational reliability thanks to
automatically and manually triggered restart or pump venting function
Maximum operational reliability thanks to proven technology
Construction
Glandless circulator with screwed connection, blocking-current proof EC motor
and integrated electronic power control.
Application
All hot-water heating systems, air-conditioning applications, industrial circulation systems.
Operating modes
Constant differential pressure
Variable differential pressure
Constant speed (3 control pump curves)
Manual functions
Setting the operating mode in accordance with the application
Setting of pump output (delivery head)
Setting the constant speed
Pump venting function
Manual restart
Automatic functions
Continuous power adjustment according to the operating mode
Automatic restart
Automatic dry-running detection
Signal and display functions
Display of the current power consumption in W
Display of the current flow rate in m³/h
Display of delivery head for setting
Display of fault messages (error codes)
Display of manually activated restart or pump venting function
| SKU | 4215518 |
|---|---|
| Manufacturers | Wilo |
| Manufacturers Warranty | 5 Years |
| Weight | 1.9 Kg |

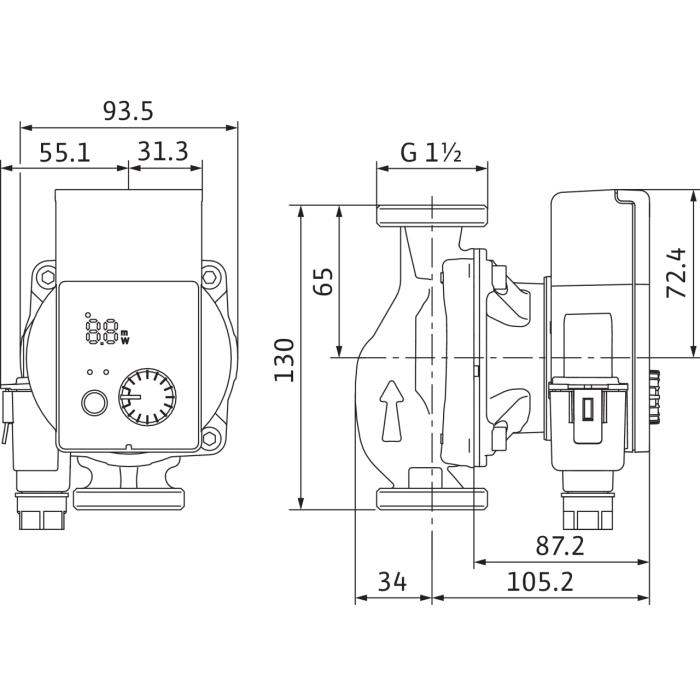

| Dimensions | 139.2mm (H) x 130mm (L) x 93.5mm (D) |
| Connection Type | 1 1/2 Inch BSP |
| Motor Size | 3-75W |
| Full Load Current (FLC) | 0.7A Current Consumption |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 4.4m3/hr |
| Max Head | 7.5mtr |
| Max Temperature | 95oC |
| Material | Cast Iron |
| Impeller Material | PP-GF40 |
