Wilo Yonos MAXO 40/0,5-4 220 DN40 PN6/10 Single Head Circulating Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Wilo Yonos MAXO 40/0,5-4 220 DN40 PN6/10 Single Head Circulating Pump 240v - 2120645

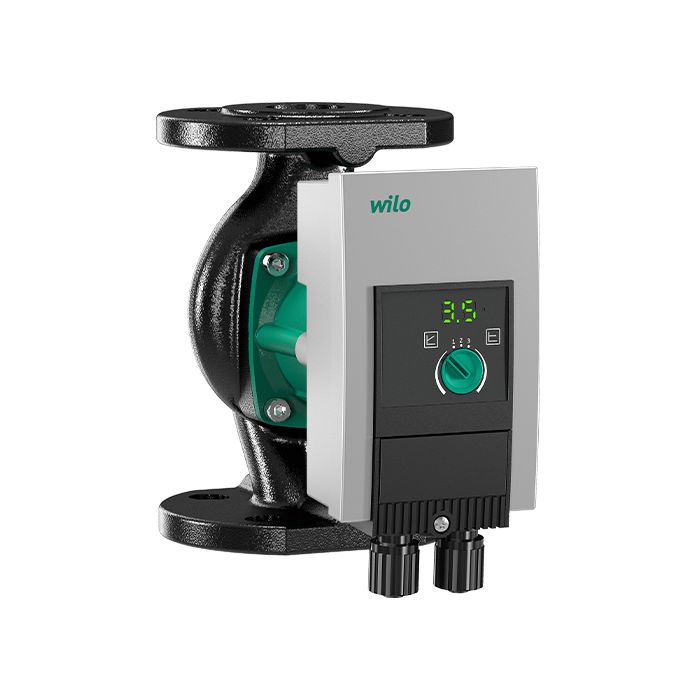

High efficiency pump Wilo-Yonos MAXO
Electronically controlled
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control.
Can be used for all heating, ventilation and air-conditioning applications.
Standard-equipped with:
Preselectable control modes for optimum load adjustment: Δp-c (differential pressure constant), Δp-v (differential pressure variable)
3 speed stages (n = constant)
LED for setting the setpoint and displaying error messages
Electrical connection with the Wilo plug
Fault lamp and contact for collective fault signal
For flange-end pumps - flange versions:
Standard version for pumps DN 32 to DN 65:
PN6/10 combination flange (PN 16 flange according to EN 1092-2) for PN6 and PN16 counter flanges
Standard version for DN 80/DN 100 pumps:
PN6 flange (designed for PN 16 according to EN 1092-2) for PN6 counter flange
| SKU | 2120645 |
|---|---|
| Manufacturers | Wilo |
| Manufacturers Warranty | 2 Years |
| Weight | 10.2 Kg |
| Dimensions | 232mm (H) x 220mm (L) x 102mm (D) |
| Connection Type | 40mm Flanged |
| Motor Size | 7-120watt |
| Full Load Current (FLC) | 1A Rated Current |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 11m3/hr |
| Max Head | 5mtr |
| Max Temperature | 110oC |
| Material | Cast Iron |
| Impeller Material | PPS-GF40 |
