Wilo Stratos MAXO 30/0,5-10 180 PN10 Single Head Circulating Pump 240v

SKU
2164575
MRRP £1,345.00 + VAT Our price £928.00 (+ VAT) Incl. VAT: £1,113.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Wilo Stratos MAXO 30/0,5-10 180 PN10 Single Head Circulating Pump 240v - 2164575

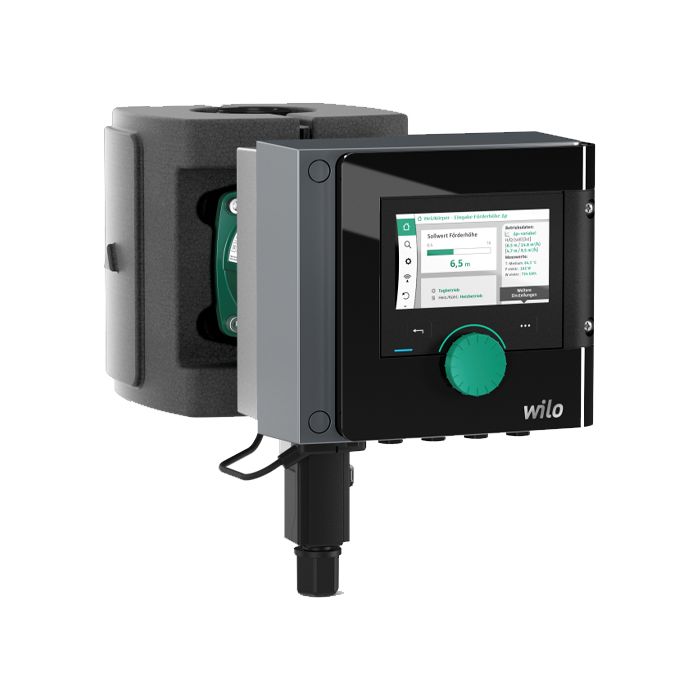

Premium smart-pump Wilo-Stratos MAXO

High-efficiency inline glandless pump with EC motor and electronic power adjustment. Can be used for cold water, heating water and water/glycol mixtures. Energy efficiency index (EEI) between ≤ 0.17 and ≤ 0.19 depending on pump type.

Control modes:

  • Permanent, automatic performance adaptation to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control mode.
  • Constant temperature
  • Constant differential temperature
  • Needs-based volume flow optimisation of the feeder pump through connectivity and communication between multiple pumps
  • Constant volume flow
  • Differential pressure control (dp-c) to a remote point in the pipe network
  • Constant differential pressure
  • Variable differential pressure with the option to set the nominal duty point
  • Constant speed
  • User-defined PID control

Functions:

  • Heat quantity measurement
  • Cooling quantity measurement
  • Pump automatically deactivates when no flow is detected
  • Switchover between heating and cooling mode (automatic, external or manual)
  • Adjustable volume flow limiter using the Q-Limit function
  • Operating modes of twin-head pumps: Efficiency-optimised parallel operation for dp-c and dp-v, main and standby operation
  • Ability to save and restore configured pump settings
  • Fault and warning messages shown in plain text with advice on resolving the issue
  • Pump venting function for automatic venting of the rotor chamber
  • Automatic setback operation
  • Automatic deblocking function and integrated full motor protection
  • Dry-running detection

Display:

  • Control mode
  • Setpoint
  • Volume flow
  • Temperature
  • Power consumption
  • Electric consumption
  • Active influences (e.g. STOP, No-Flow Stop)
More Information
SKU 2164575
Manufacturers Wilo
Manufacturers Warranty 2 Years
Weight 8.6 Kg
Dimensions 345mm (H) x 180mm (L) x 210mm (D)
Connection Type 2 Inch BSP
Motor Size 7-275watt
Voltage 240V 1Ph 50Hz
Max Flow 12m3/hr
Max Head 10mtr
Max Temperature 110oC
Material Cast Iron
Impeller Material PPS-GF40
