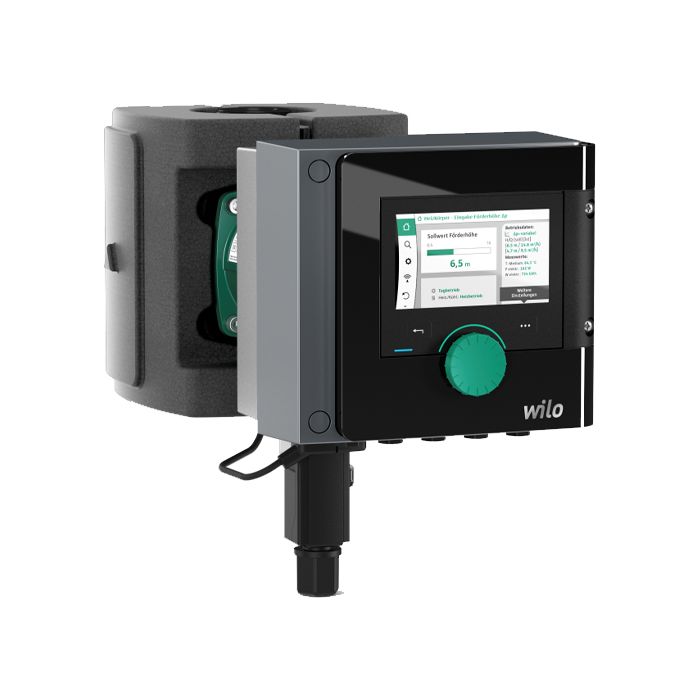

Wilo Stratos MAXO 25/0,5-6 180 PN16 Single Head Circulating Pump 240v

Wilo Stratos MAXO 25/0,5-6 180 PN16 Single Head Circulating Pump 240v - 2186256

Premium smart-pump Wilo-Stratos MAXO

High-efficiency inline glandless pump with EC motor and electronic power adjustment. Can be used for cold water, heating water and water/glycol mixtures. Energy efficiency index (EEI) between ≤ 0.17 and ≤ 0.19 depending on pump type.

Control modes:

• Permanent, automatic performance adaptation to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control mode.
• Constant temperature
• Constant differential temperature
• Needs-based volume flow optimisation of the feeder pump through connectivity and communication between multiple pumps
• Constant volume flow
• Differential pressure control (dp-c) to a remote point in the pipe network
• Constant differential pressure
• Variable differential pressure with the option to set the nominal duty point
• Constant speed
• User-defined PID control

Functions:

• Heat quantity measurement
• Cooling quantity measurement
• Pump automatically deactivates when no flow is detected
• Switchover between heating and cooling mode (automatic, external or manual)
• Adjustable volume flow limiter using the Q-Limit function
• Operating modes of twin-head pumps: Efficiency-optimised parallel operation for dp-c and dp-v, main and standby operation
• Ability to save and restore configured pump settings
• Fault and warning messages shown in plain text with advice on resolving the issue
• Pump venting function for automatic venting of the rotor chamber
• Automatic setback operation
• Automatic deblocking function and integrated full motor protection
• Dry-running detection

Display:

• Control mode
• Setpoint
• Volume flow
• Temperature
• Power consumption
• Electric consumption
• Active influences (e.g. STOP, No-Flow Stop)
