TPED 50-830/2 Series 1000 18.5kW Single Stage Twin Head 2 Pole Variable Speed In Line 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPED 1000 50-830/2 A F A BQQE Single Stage Twin Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 18.5kW Motor and flanged pump connections.
The Grundfos TPE Series 1000 Cast Iron Pump Complete With 2 Poles Variable Speed Electric Motor
Single-stage centrifugal in-line twin-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 50mm flanged connection
- Optional flange sets available, see accessories below for options.
IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 96096501 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5700395798067 |
| Weight | 509.0 Kg |

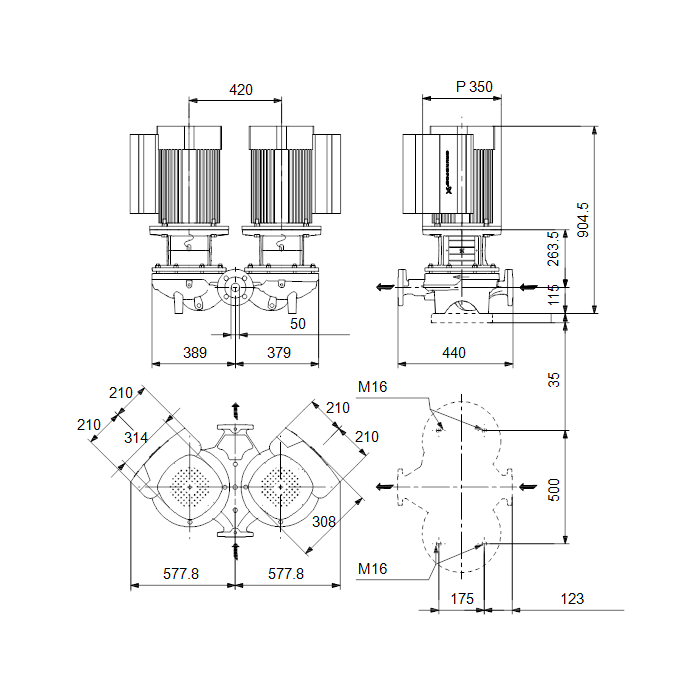

| Dimensions | 905mm (h) x 768mm (w) x 440mm (d) |
| Connection Type | 50mm Flanged |
| Motor Size | 18.5 kW |
| Full Load Current (FLC) | 31.0 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2940rpm |
| Max Flow | 68m3/hr |
| Max Head | 83m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
