TPED 50-710/2 Series 1000 15kW Single Stage Twin Head 2 Pole Variable Speed In Line 415v

SKU
96096500
MRRP £28,159.00 + VAT Our price £16,333.00 (+ VAT) Incl. VAT: £19,599.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos TPED 1000 50-710/2 A F A BQQE Single Stage Twin Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 15kW Motor and flanged pump connections.

The Grundfos TPE Series 1000 Cast Iron Pump Complete With 2 Poles Variable Speed Electric Motor

Single-stage centrifugal in-line twin-head pump:

  • neck rings and impeller made of cast iron
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • 50mm flanged connection
  • Optional flange sets available, see accessories below for options.

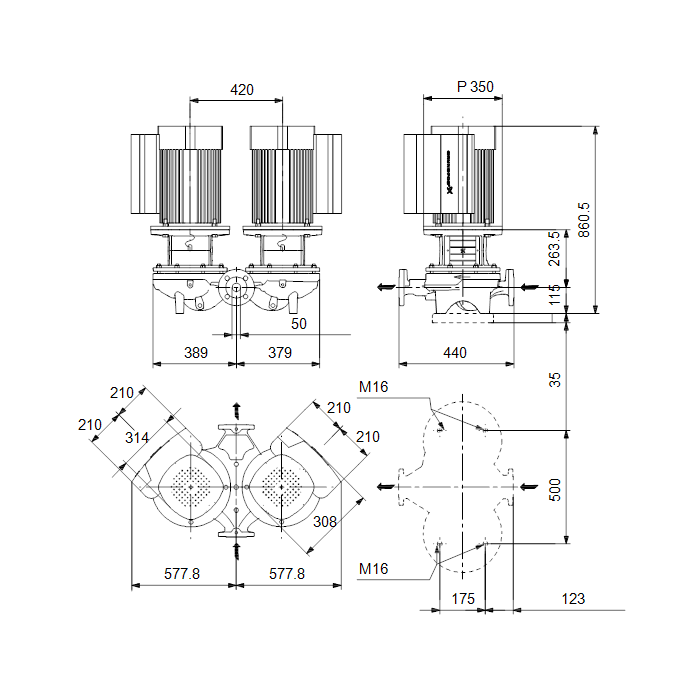

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU 96096500
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5700395798050
Weight 484.0 Kg
Dimensions 861mm (h) x 768mm (w) x 440mm (d)
Connection Type 50mm Flanged
Motor Size 15 kW
Full Load Current (FLC) 26.0 A
Voltage 415V 3Ph 50Hz
RPM 2945rpm
Max Flow 61m3/hr
Max Head 71m
Max Temperature 120 degrees C
Material Cast Iron
Impeller Material Cast Iron
