TPED 40-360/2-S Series 2000 4kW Single Stage Twin Head 2 Pole Variable Speed In Line 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPED 2000 40-360/2-S A F A BQQE Single Stage Twin Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 4kW Motor and flanged pump connections.
The Grundfos TPED Series 2000 Cast Iron Pump Complete With 2 Poles Variable Speed Electric Motor and Differential Pressure Sensor.
Single-stage centrifugal in-line twin-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 40mm flanged connections
- The pump is fitted with a differential pressure sensor
IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 99132807 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712607354503 |
| Weight | 150.0 Kg |

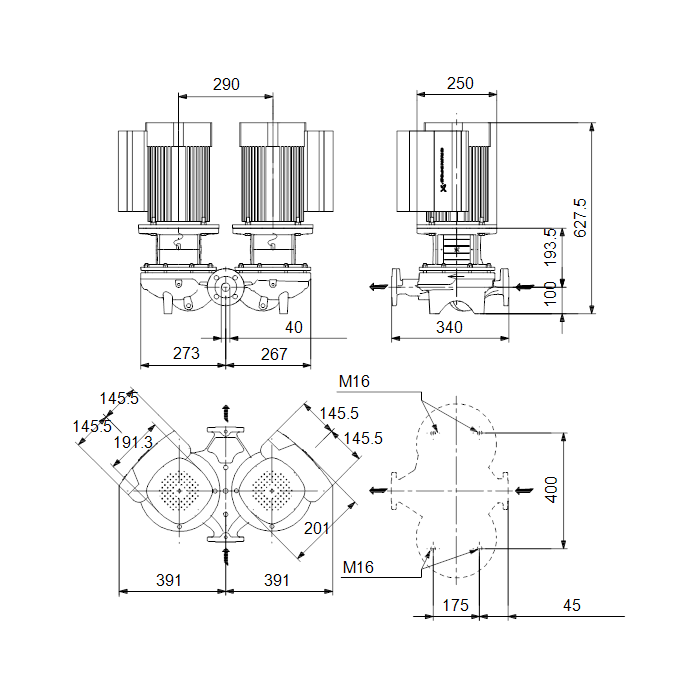

| Dimensions | 628mm (h) x 540mm (w) x 340mm (d) |
| Connection Type | 40mm Flanged |
| Motor Size | 4 kW |
| Full Load Current (FLC) | 6.20 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2920rpm |
| Max Flow | 30m3/hr |
| Max Head | 36m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
