TPED 100-110/4-S Series 2000 3kW Single Stage Twin Head 4 Pole Variable Speed In Line 415v

Name: TPED 100-110/4-S Series 2000 3kW Single Stage Twin Head 4 Pole Variable Speed In Line 415v
Brand: Grundfos
SKU: 99132860
Price: 9573 GBP
Availability: InStock

SKU

99132860

MRRP £16,505.00 + VAT Our price £9,573.00 (+ VAT) Incl. VAT: £11,487.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TPED 2000 100-110/4-S A F A BQQE Single Stage Twin Head In-Line Pump with 4 Pole 415V 3Ph 50Hz, 3kW Motor and flanged pump connections.

The Grundfos TPED Series 2000 Cast Iron Pump Complete With 4 Poles Variable Speed Electric Motor and Differential Pressure Sensor.

Single-stage centrifugal in-line twin-head pump:

neck rings and impeller made of cast iron
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
100mm flanged connections
The pump is fitted with a differential pressure sensor

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

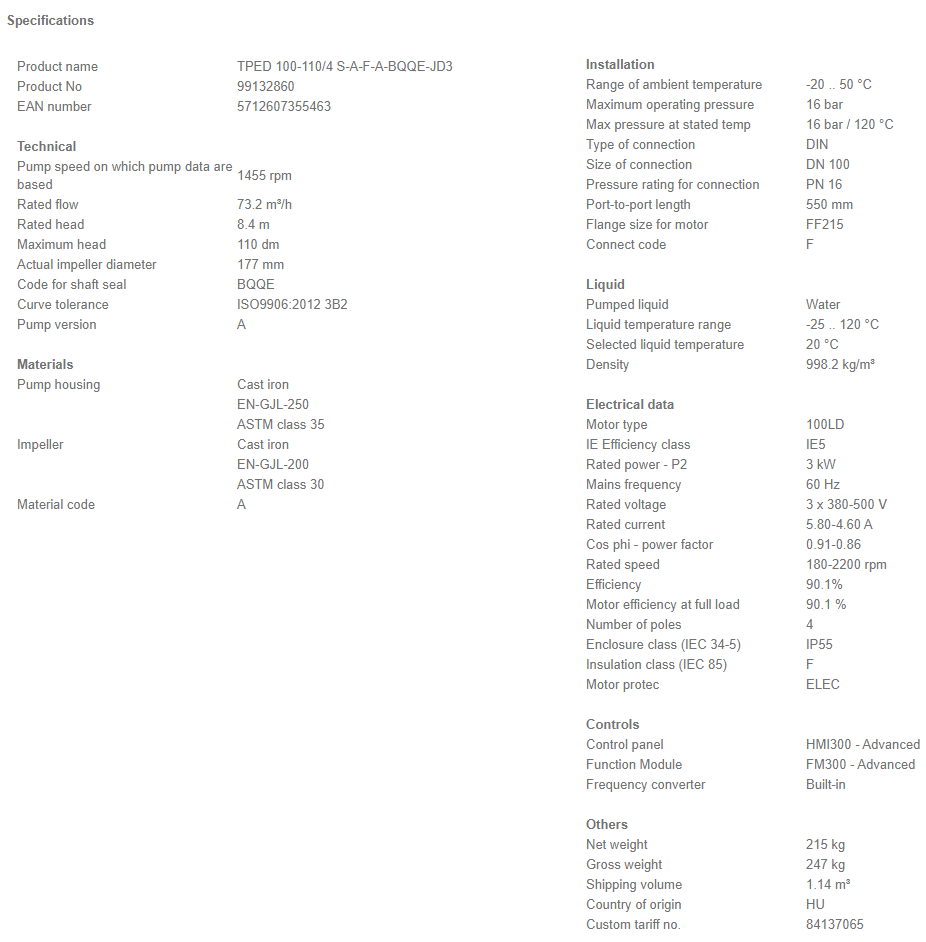

More Information
SKU	99132860
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712607355463
Weight	247.0 Kg

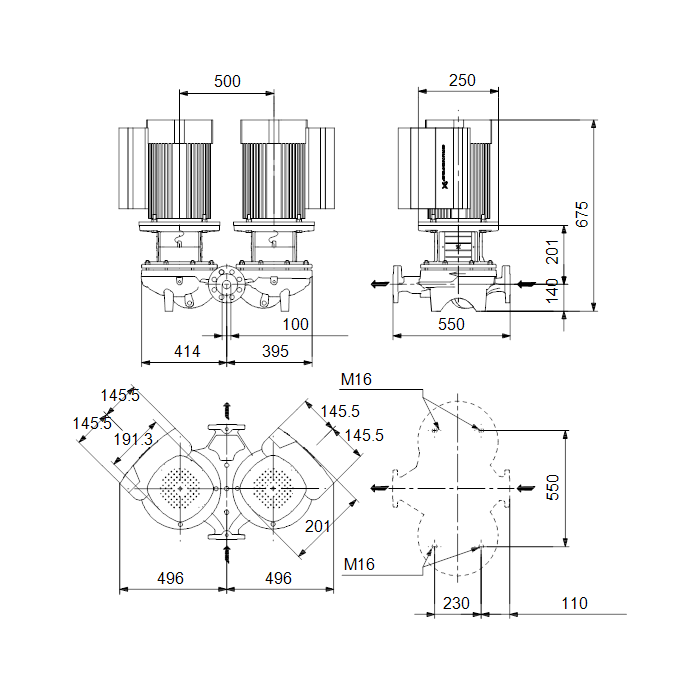

Dimensions	675mm (h) x 809mm (w) x 550mm (d)
Connection Type	100mm Flanged
Motor Size	3 kW
Full Load Current (FLC)	4.60 A
Voltage	415V 3Ph 50Hz
RPM	1455rpm
Max Flow	132m3/hr
Max Head	11m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Cast Iron
