TPE3 D 65-120-S A F A BQQE 0.75kW Single Stage Twin Head Variable Speed In Line With DP+T Sensor 415v

Name: TPE3 D 65-120-S A F A BQQE 0.75kW Single Stage Twin Head Variable Speed In Line With DP+T Sensor 415v
Brand: Grundfos
SKU: 99272560
Price: 6157 GBP
Availability: InStock

SKU

99272560

MRRP £10,614.00 + VAT Our price £6,157.00 (+ VAT) Incl. VAT: £7388.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TPE3 D 65-120-S A F A BQQE Single Stage Twin Head Variable Speed In-Line Pump with built-in differential pressure and temperature transducer 415V 3Ph 50/60Hz, 0.75kW Motor and flanged pump connections.

Single-stage, twin head, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.

The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2.

TPE3 pumps have a built-in differential pressure and temperature transducer and are pre-programmed for close loop control.

neck rings and impeller made of composite
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
RP 65mm flanged Outlet

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	99272560
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5713826366919
Weight	70.0 Kg

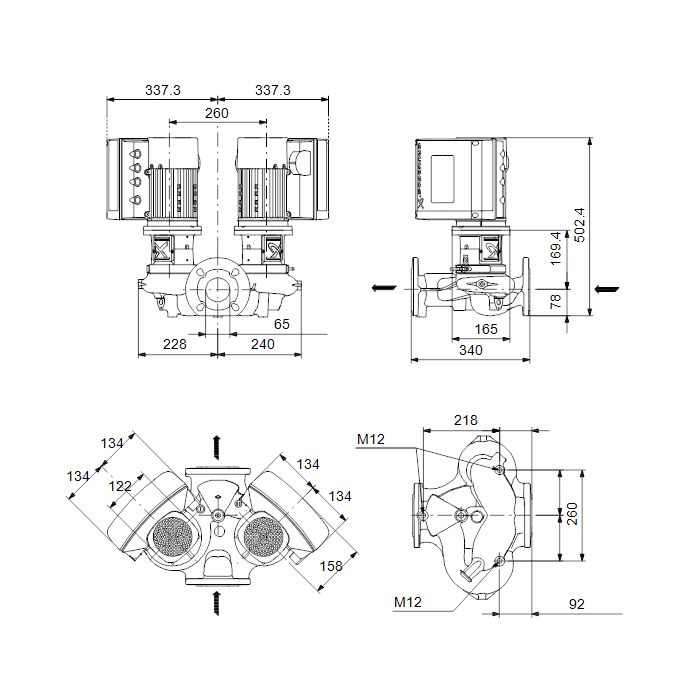

Dimensions	503mm (h) x 468mm (w) x 340mm (d)
Connection Type	65mm Flanged
Motor Size	0.75 kW
Full Load Current (FLC)	1.60 A
Voltage	415V 3Ph 50Hz
RPM	3530rpm
Max Flow	46m3/hr
Max Head	12m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Composite
