TPE3 40-200 S Single Stage Single Head Stainless Steel Variable Speed In Line With DP+T Sensor 1.1kW 240V

Name: TPE3 40-200 S Single Stage Single Head Stainless Steel Variable Speed In Line With DP+T Sensor 1.1kW 240V
Brand: Grundfos
SKU: 98416508
Price: 4131 GBP
Availability: InStock

SKU

98416508

MRRP £7,121.00 + VAT Our price £4,131.00 (+ VAT) Incl. VAT: £4,957.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

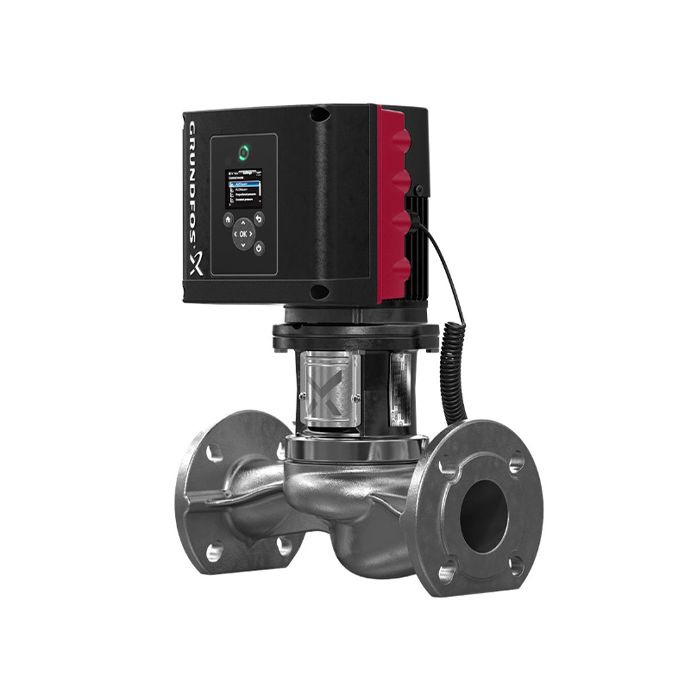

Grundfos TPE3 40-200-S A F I BQQE Single Stage Single Head Stainless Steel for Hot Water Service In-Line Pump with Variable Speed High Efficiency Motor and Built In DP+T Sensor 240V 1Ph 50Hz, 1.1kW Motor and flanged pump connections.

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.

neck rings and impeller made of composite
The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
The pump is fitted with a fan-cooled, permanent-magnet asynchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
The pump is fitted with a combined temperature- and differential pressure sensor.
corrosion resistant maintenance-free mechanical shaft seal.
40mm flanged connection

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98416508
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711494652570
Weight	31.1 Kg

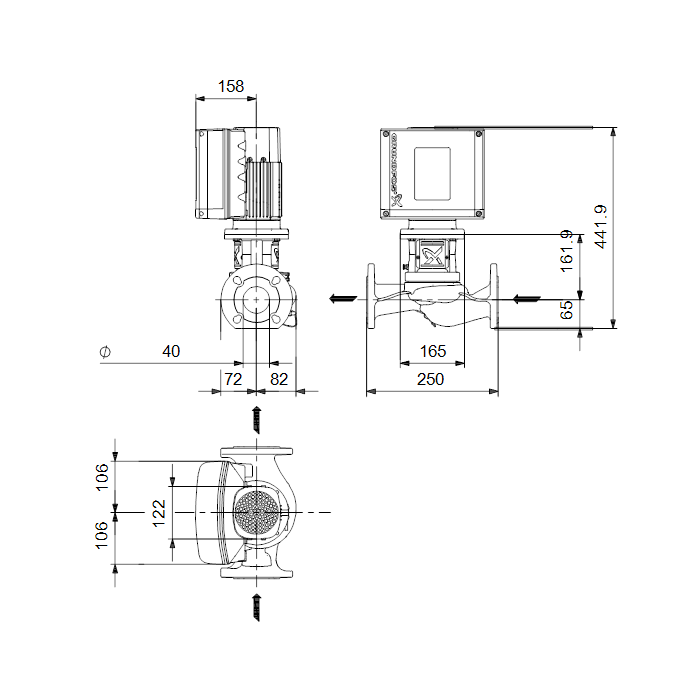

Dimensions	442mm (h) x 250mm (w) x 154mm (d)
Connection Type	40mm Flanged
Motor Size	1.1 kW
Full Load Current (FLC)	6.80-5.70 A
Voltage	240V 1Ph 50Hz
RPM	5000rpm
Max Flow	32m3/hr
Max Head	20m
Max Temperature	120 degrees C
Material	Stainless Steel
Impeller Material	Composite
