TPE2 D 65-120-N A F A BQQE 0.75kW Single Stage Twin Head Variable Speed In Line 415v

Name: TPE2 D 65-120-N A F A BQQE 0.75kW Single Stage Twin Head Variable Speed In Line 415v
Brand: Grundfos
SKU: 98438145
Price: 5399 GBP
Availability: InStock

SKU

98438145

MRRP £9,308.00 + VAT Our price £5,399.00 (+ VAT) Incl. VAT: £6,478.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TPE2 D 65-120-N A F A BQQE Single Stage Twin Head Variable Speed In-Line Pump 415V 3Ph 50/60Hz, 0.75kW Motor and flanged pump connections.

Single-stage, twin head, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.

neck rings and impeller made of composite
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
RP 65mm flanged Outlet
Optional union sets available, see accessories below for options.

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98438145
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711495014940
Weight	70.1 Kg

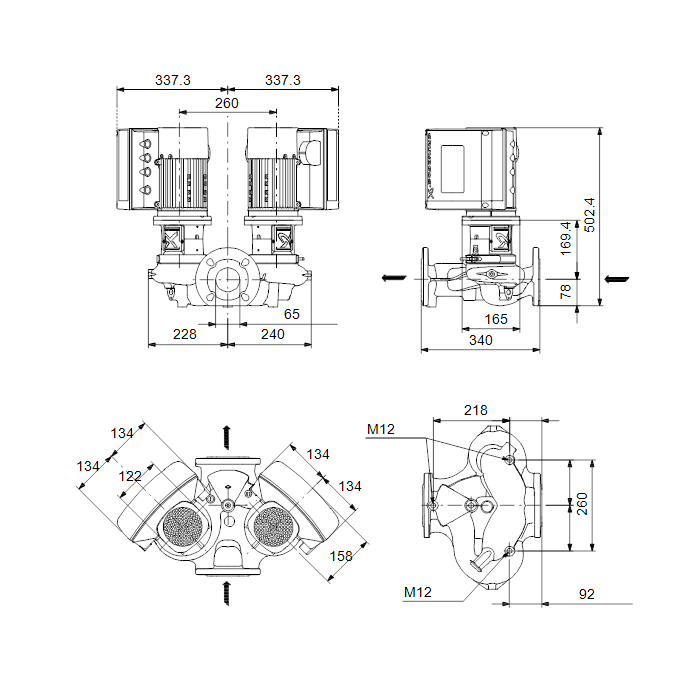

Dimensions	503mm (h) x 468mm (w) x 340mm (d)
Connection Type	65mm Flanged
Motor Size	0.75 kW
Full Load Current (FLC)	1.60 A
Voltage	415V 3Ph 50Hz
RPM	3530rpm
Max Flow	47m3/hr
Max Head	12m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Composite
