TPE2 40-80-N A F A BQQE 0.25kW Single Stage Single Head Variable Speed In Line 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos TPE2 40-80-N A F A BQQE Single Stage Single Head Variable Speed In-Line Pump 240V 1Ph 50/60Hz, 0.25kW Motor and flanged pump connections.
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
- neck rings and impeller made of composite
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- RP 40mm flanged Outlet
- Optional union sets available, see accessories below for options.
IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 98438343 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5711495017118 |
| Weight | 30.8 Kg |

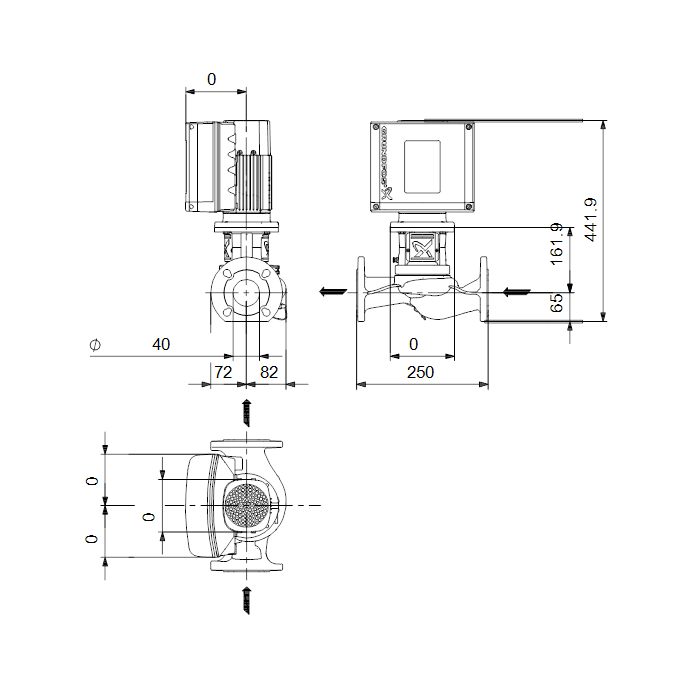

| Dimensions | 442mm (h) x 250mm (w) x 154mm (d) |
| Connection Type | 40mm Flanged |
| Motor Size | 0.25 kW |
| Full Load Current (FLC) | 1.75-1.50 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2970rpm |
| Max Flow | 21m3/hr |
| Max Head | 8m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Composite |
