TPE 100-330/4 Series 1000 15kW Single Stage Single Head 4 Pole Variable Speed In Line 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.

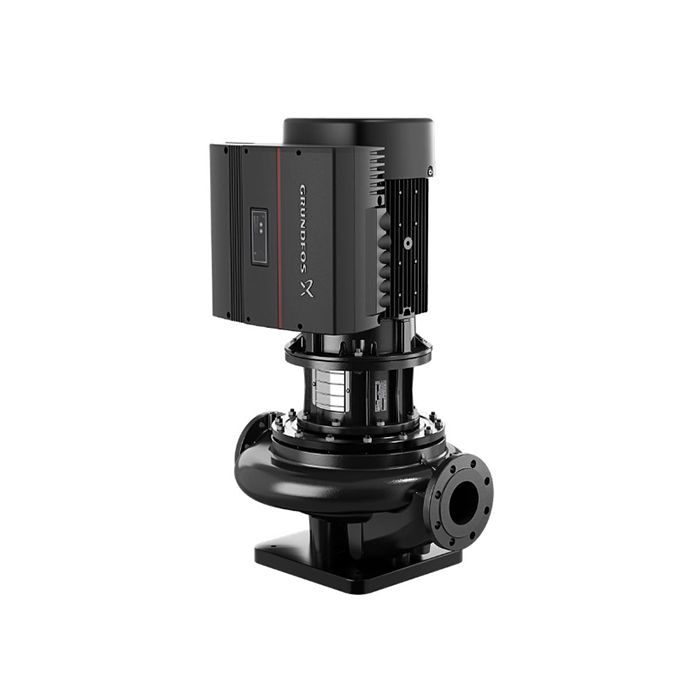

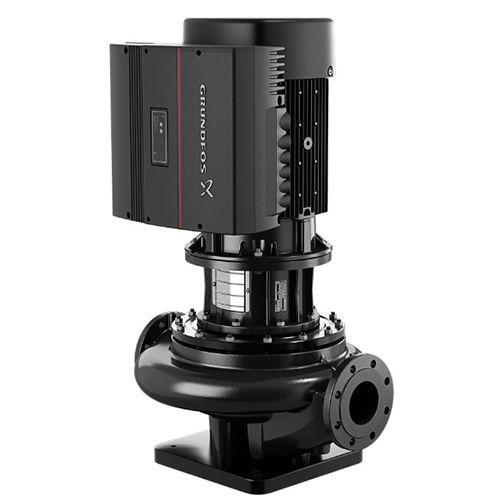

Grundfos TPE 1000 100-330/4 A F A BQQE Single Stage Single Head In-Line Pump with 4 Pole 415V 3Ph 50Hz, 15kW Motor and flanged pump connections.
The Grundfos TPE Series 1000 Cast Iron Pump Complete With 4 Poles Variable Speed Electric Motor
Single-stage centrifugal in-line single-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 100mm flanged connection
- Optional flange sets available, see accessories below for options.
IMAGE FOR ILLUSTRATION PURPOSES ONLY.

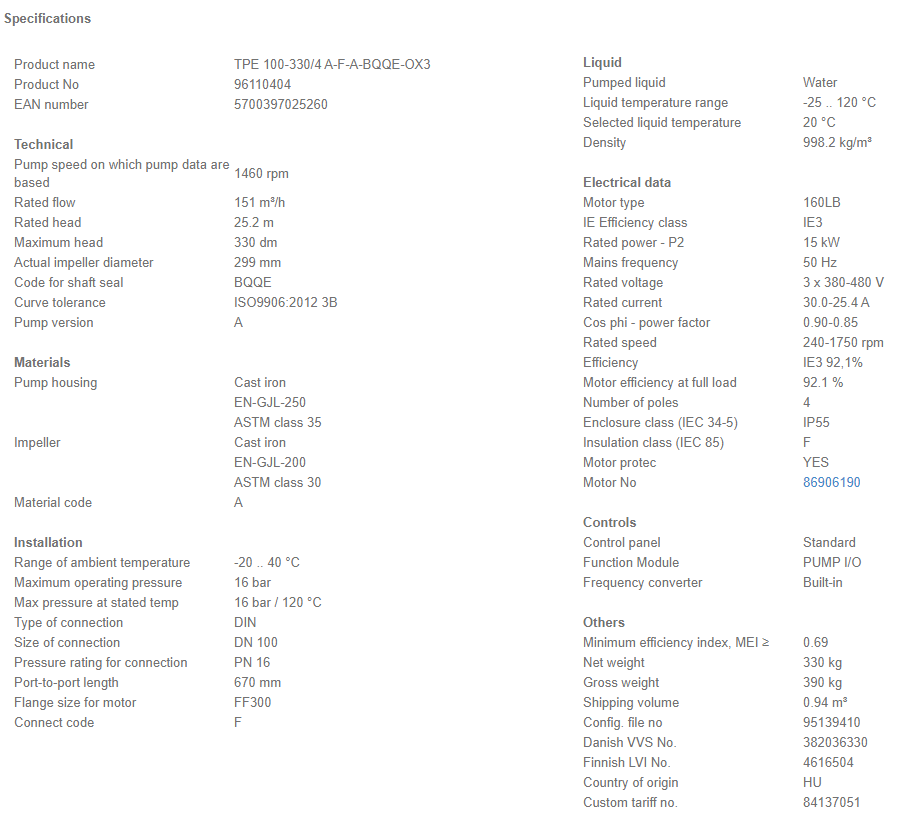

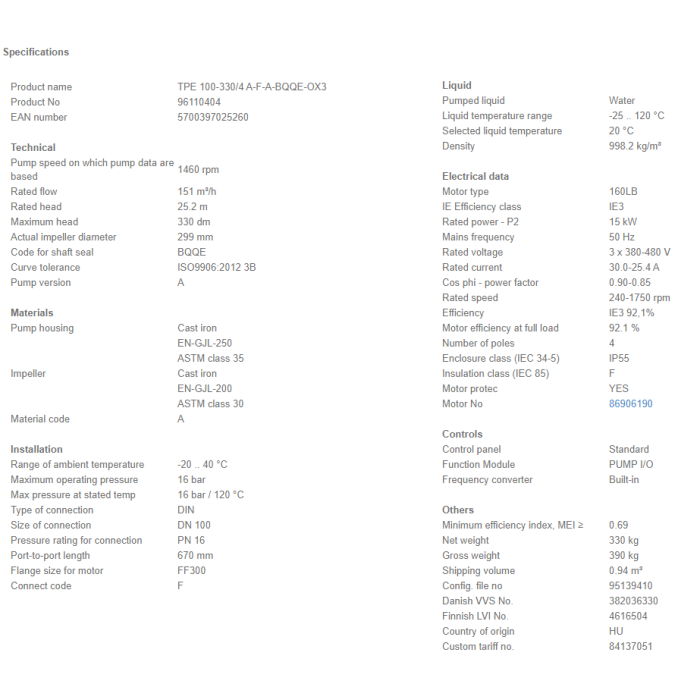

SKU | 96110404 |
---|---|
Manufacturers | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5700397025260 |
Weight | 387.0 Kg |

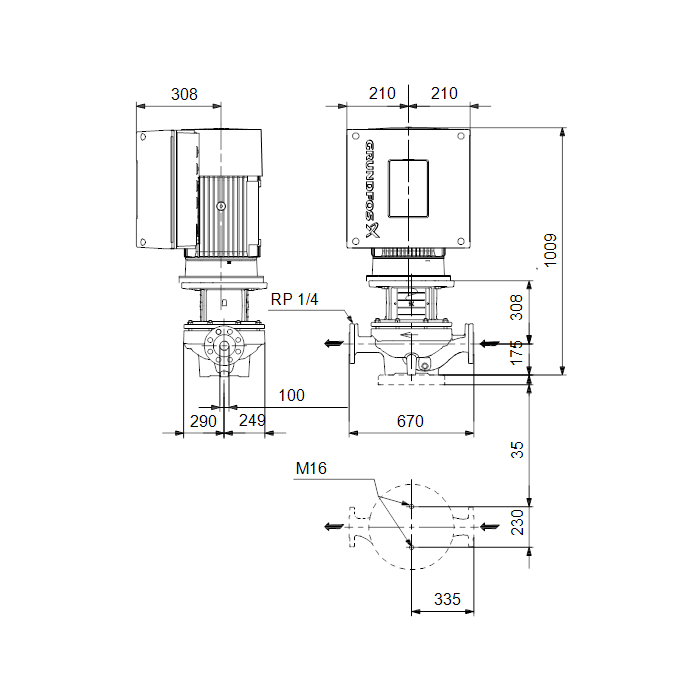

Dimensions | 1009mm (h) x 670mm (w) x 539mm (d) |
Connection Type | 100mm Flanged |
Motor Size | 15 kW |
Full Load Current (FLC) | 25.4 A |
Voltage | 415V 3Ph 50Hz |
RPM | 1460rpm |

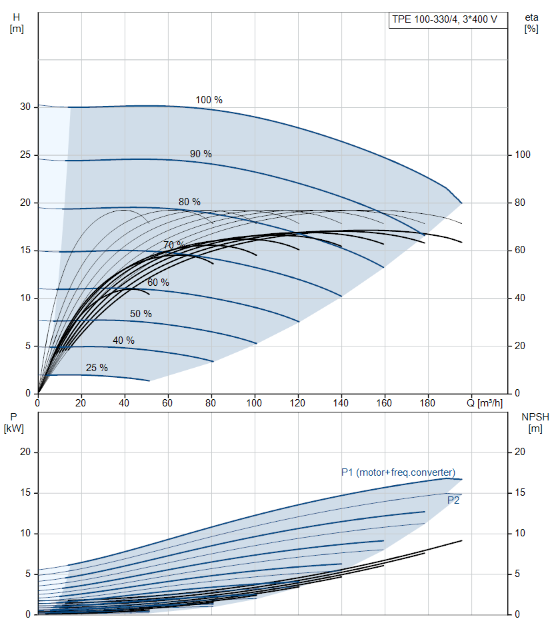

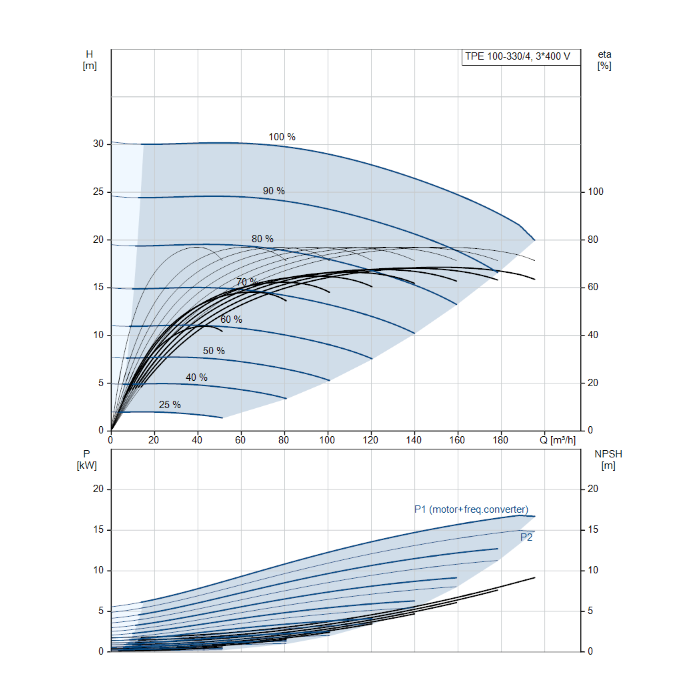

Max Flow | 196m3/hr |
Max Head | 33m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Cast Iron |
