TPD 50-90/4 A F A BQQE 0.55kW Single Stage Twin Head In Line 4 Pole 240v

SKU
96384250
MRRP £5,185.00 + VAT Our price £3,008.00 (+ VAT) Incl. VAT: £3,609.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos TPD 50-90/4 A F A BQQE Single Stage Twin Head In-Line Pump with 4 Pole 240V 1Ph 50Hz, 0.55kW Motor and flanged pump connections.

Single-stage centrifugal in-line twin-head pump:

  • neck rings and impeller made of cast iron
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • 50mm flanged

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU 96384250
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5700832152636
Weight 105.0 Kg

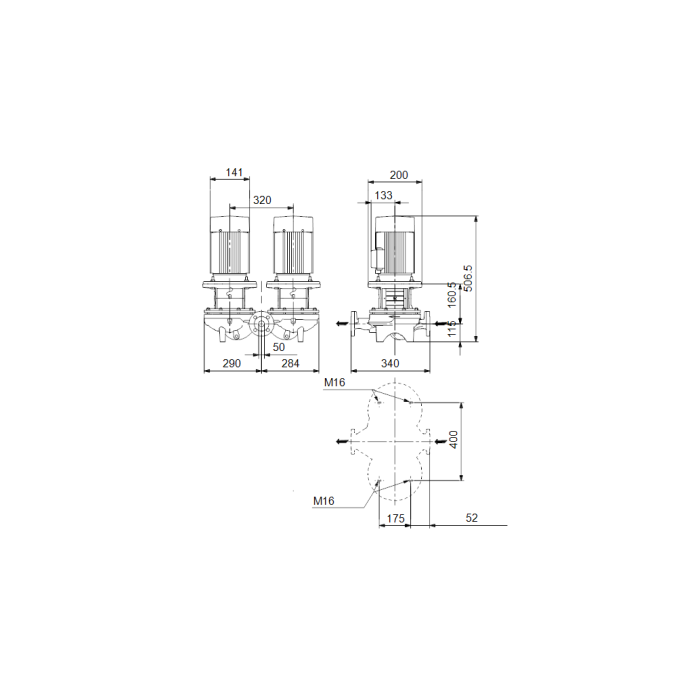

Dimensions 507mm (h) x 574mm (w) x 340mm (d)
Connection Type 50mm Flanged
Motor Size 2 x 0.55 kW
Full Load Current (FLC) 4 A
Voltage 240V 1Ph 50Hz
RPM 1400rpm
Max Flow 20m3/hr
Max Head 9m
Max Temperature 120 degrees C
Material Cast Iron
Impeller Material Cast Iron
