TPD 40-140/4 A F A BQQE 1.1kW Single Stage Twin Head In Line 4 Pole 240v
SKU
98760138
MRRP
£5,505.00
+ VAT
Our price
£3,193.00
(+ VAT)
Incl. VAT: £3831.60
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.

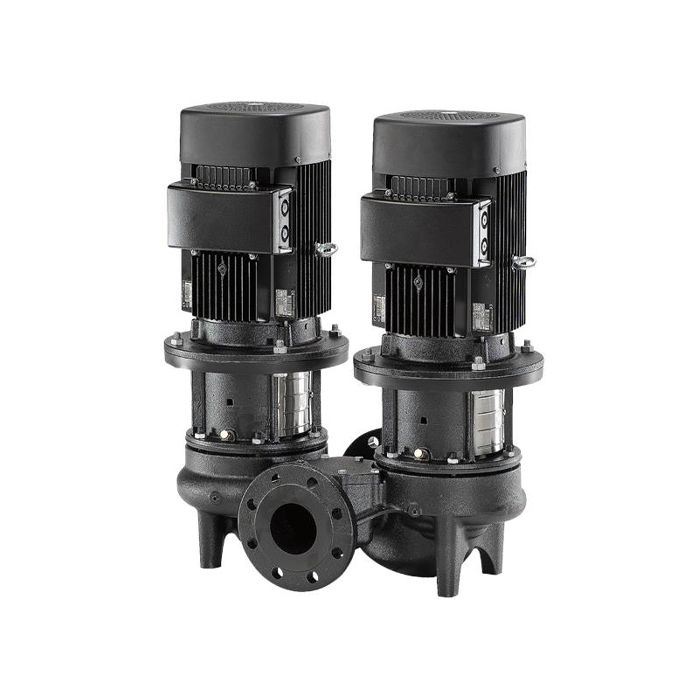

Grundfos TPD 40-140/4 A F A BQQE Single Stage Twin Head In-Line Pump with 4 Pole 240V 1Ph 50Hz, 1.1kW Motor and flanged pump connections.
Single-stage centrifugal in-line twin-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 40mm flanged
IMAGE FOR ILLUSTRATION PURPOSES ONLY.
SKU | 98760138 |
---|---|
Manufacturers | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5712600991231 |
Weight | 134.0 Kg |

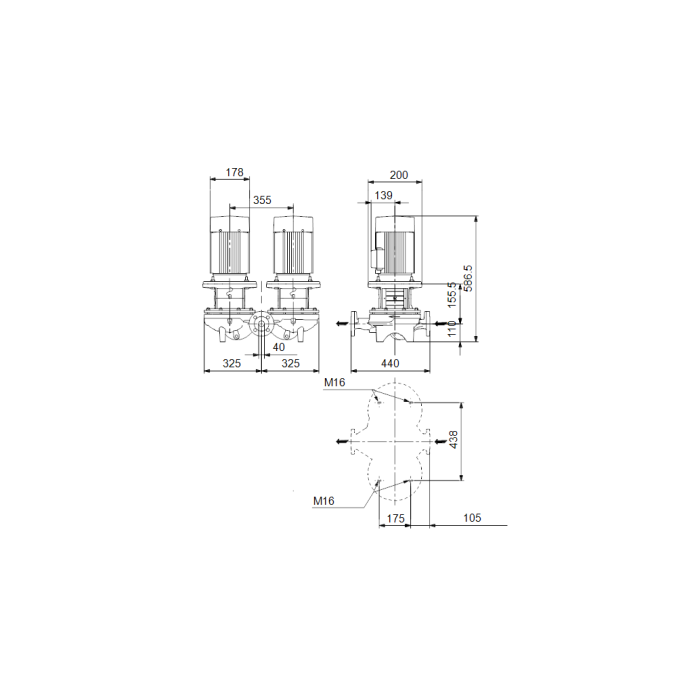

Dimensions | 587mm (h) x 650mm (w) x 440mm (d) |
Connection Type | 40mm Flanged |
Motor Size | 2 x 1.1 kW |
Full Load Current (FLC) | 7 A |
Voltage | 240V 1Ph 50Hz |
RPM | 1440rpm |
Max Flow | 20m3/hr |
Max Head | 14m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Cast Iron |
