TPD 100-160/2 A F A BQQE 4kW Single Stage Twin Head In Line 2 Pole 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Grundfos TPD 100-160/2 A F A BQQE Single Stage Twin Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 4kW Motor and flanged pump connections.
Single-stage centrifugal in-line dual-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- 100mm flanged

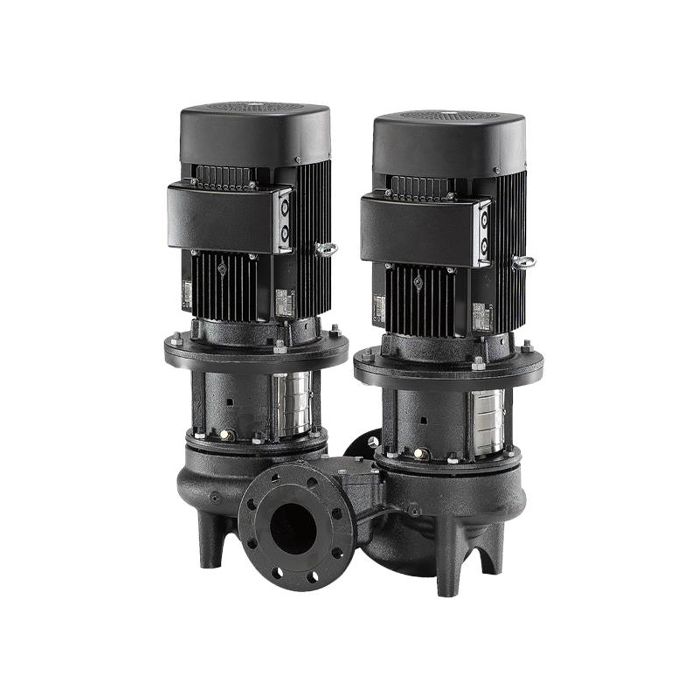

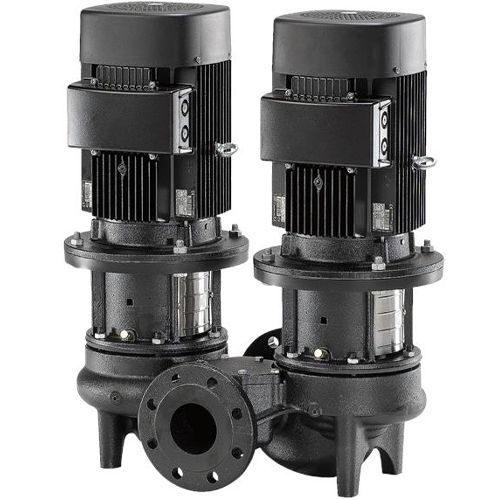

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
SKU | 96109245 |
---|---|
Manufacturers | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5700396982229 |
Weight | 213.0 Kg |

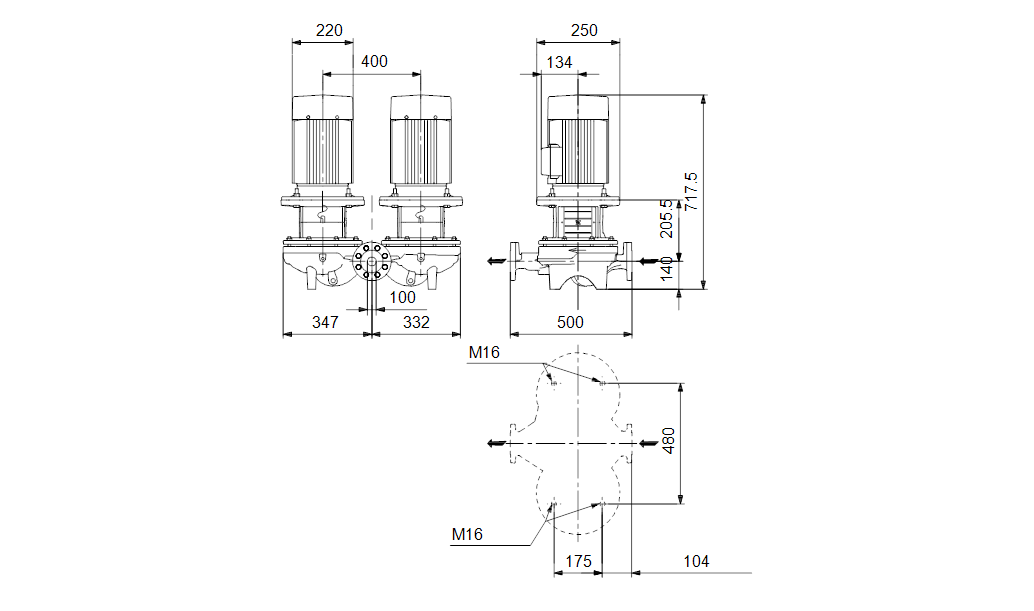

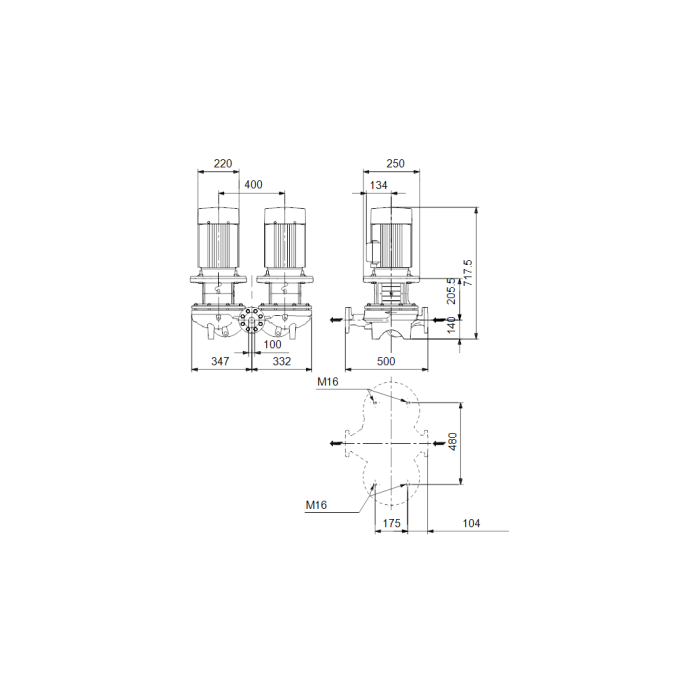

Dimensions | 718mm (h) x 679mm (w) x 500mm (d) |
Connection Type | 100mm Flanged |
Motor Size | 2 x 4 kW |
Full Load Current (FLC) | 7.9 A |
Voltage | 415V 3Ph 50Hz |
RPM | 2920rpm |
Max Flow | 77m3/hr |
Max Head | 16m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Cast Iron |
