TP 50-90/4 A F A BQQE 0.55kW Single Stage Single Head In Line 4 Pole 415v

Name: TP 50-90/4 A F A BQQE 0.55kW Single Stage Single Head In Line 4 Pole 415v
Brand: Grundfos
SKU: 96087117
Price: 1419 GBP
Availability: InStock

SKU

96087117

MRRP £2,446.00 + VAT Our price £1,419.00 (+ VAT) Incl. VAT: £1702.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

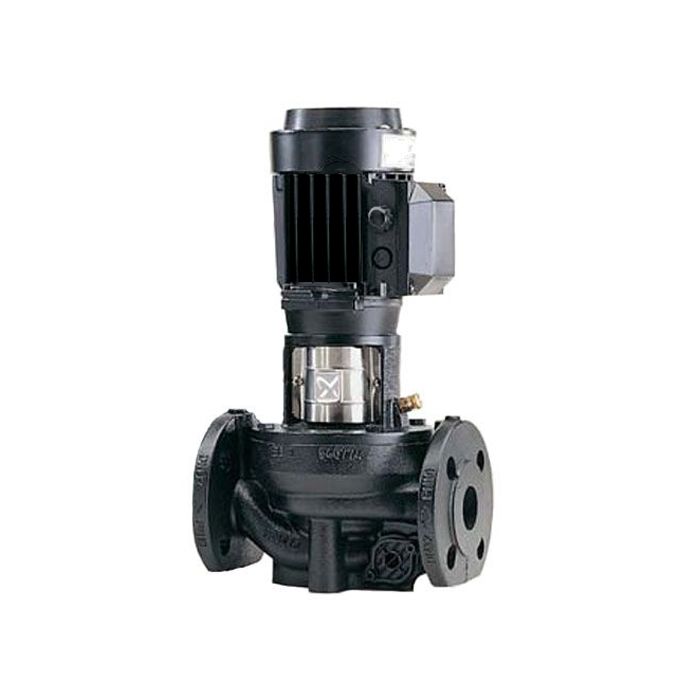

Grundfos TP 50-90/4 A F A BQQE Single Stage Single Head In-Line Pump with 4 Pole 415V 3Ph 50Hz, 0.55kW Motor and flanged connections.

Single-stage centrifugal in-line single-head pump:

neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
RP 50mm flanged Outlet

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	96087117
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700395310733
Weight	52.0 Kg
Dimensions	507mm (h) x 340mm (w) x 252mm (w)
Connection Type	50mm Flanged
Motor Size	0.55kW
Full Load Current (FLC)	1.50 A
Voltage	415V 3Ph 50Hz
RPM	1400rpm
Max Flow	21m3/hr
Max Head	9m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Cast Iron
