TP 50-60/4 A F A BQQE 0.37kW Single Stage Single Head In Line 4 Pole 415v
SKU
98957974
MRRP
£2,019.00
+ VAT
Our price
£1,172.00
(+ VAT)
Incl. VAT: £1,406.40
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Grundfos TP 50-60/4 A F A BQQE Single Stage Single Head In-Line Pump with 4 Pole 415V 3Ph 50Hz, 0.37kW Motor and flanged connections.
Single-stage centrifugal in-line single-head pump:
- neck rings and impeller made of stainless steel
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- RP 50mm flanged Outlet

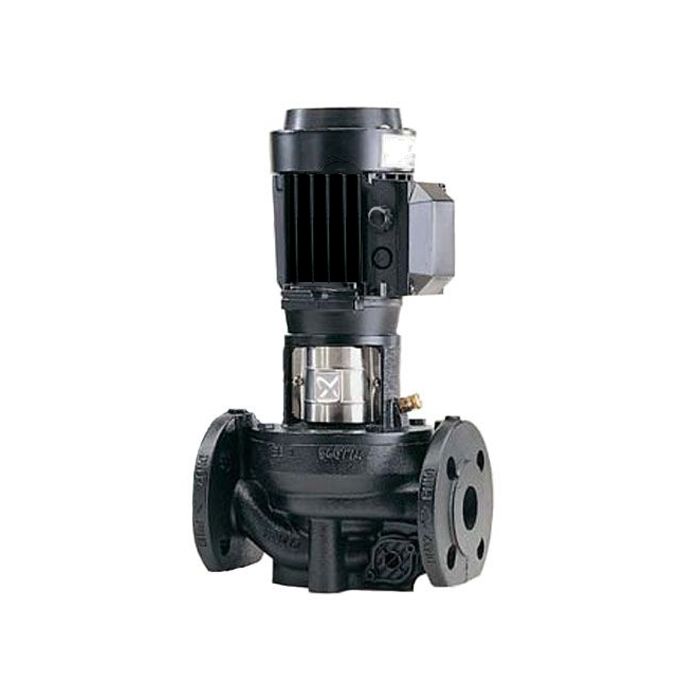

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
SKU | 98957974 |
---|---|
Manufacturers | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5712604244418 |
Weight | 54.1 Kg |

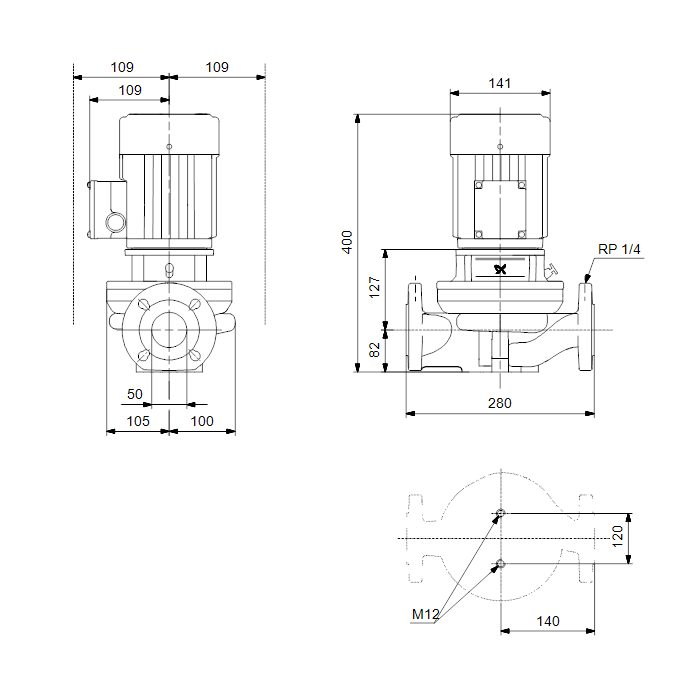

Dimensions | 400mm (h) x 280mm (w) x 205mm (d) |
Connection Type | 50mm Flanged |
Motor Size | 0.37kW |
Full Load Current (FLC) | 1.10 A |
Voltage | 415V 3Ph 50Hz |
RPM | 1430rpm |
Max Flow | 25m3/hr |
Max Head | 6m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Stainless Steel |
