TP 40-270/2 B Single Stage Single Head Bronze for Hot Water In Line 1.5kW 2 Pole 240V

Name: TP 40-270/2 B Single Stage Single Head Bronze for Hot Water In Line 1.5kW 2 Pole 240V
Brand: Grundfos
SKU: 98958129
Price: 2616 GBP
Availability: InStock

SKU

98958129

MRRP £4,510.00 + VAT Our price £2,616.00 (+ VAT) Incl. VAT: £3139.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TP 40-270/2 B A F Z BQQE Single Stage Single Head Bronze for Hot Water Service In-Line Pump with 2 Pole 240V 1Ph 50Hz, 1.5kW Motor and flanged pump connections.

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.
Suitable for heating systems, air conditioning and cooling systems, domestic water systems, ground-source heat pump systems and solar heating systems.
Neck rings and impeller made of stainless steel.
The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
The pump is fitted with a fan-cooled asynchronous motor.
Corrosion resistant maintenance-free mechanical shaft seal.
40mm flanged connection.

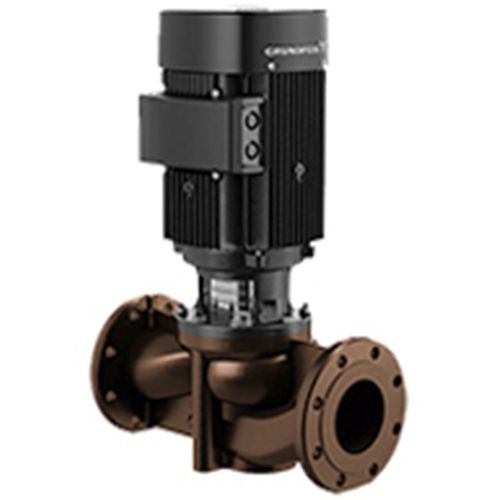

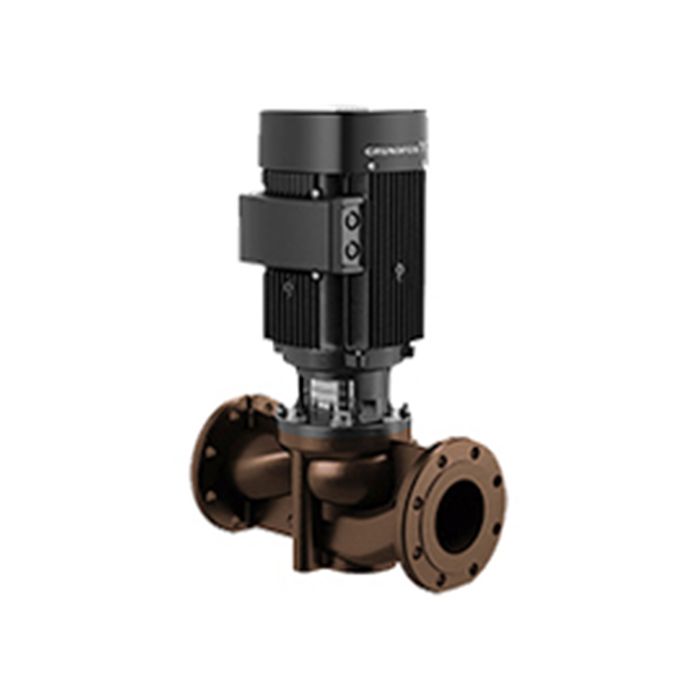

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98958129
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712604245965
Weight	46.3 Kg

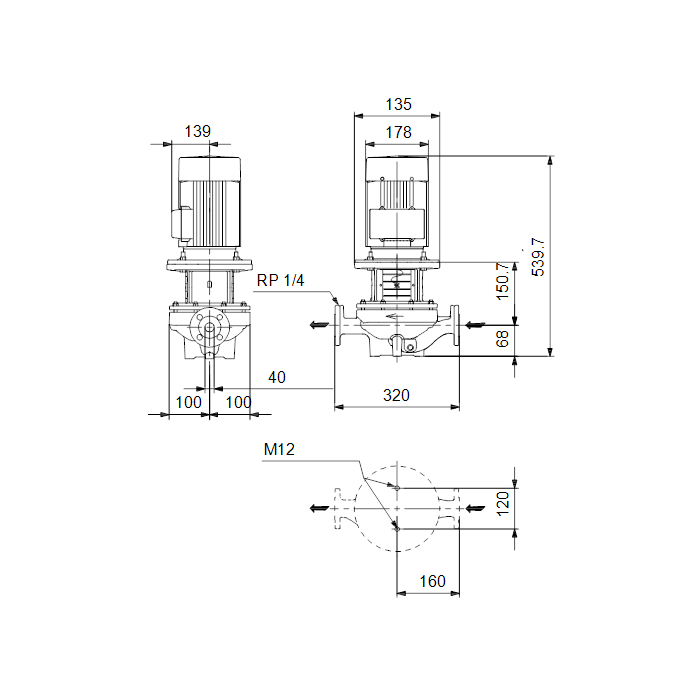

Dimensions	540mm (h) x 320mm (w) x 200mm (d)
Connection Type	40mm Flanged
Motor Size	1.5 kW
Full Load Current (FLC)	9.90/8.90 A
Voltage	240V 1Ph 50Hz
RPM	2880rpm
Max Flow	17.5m3/hr
Max Head	27m
Max Temperature	120 degrees C
Material	Bronze
Impeller Material	Stainless Steel
