TP 40-180/2 A F A BQQE 0.55kW Single Stage Single Head In Line 2 Pole 415v

Name: TP 40-180/2 A F A BQQE 0.55kW Single Stage Single Head In Line 2 Pole 415v
Brand: Grundfos
SKU: 98133671
Price: 1149 GBP
Availability: InStock

SKU

98133671

MRRP £1,980.00 + VAT Our price £1,149.00 (+ VAT) Incl. VAT: £1378.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Gasket Set Option

Choose Flange Set Option

Choose Bellow Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

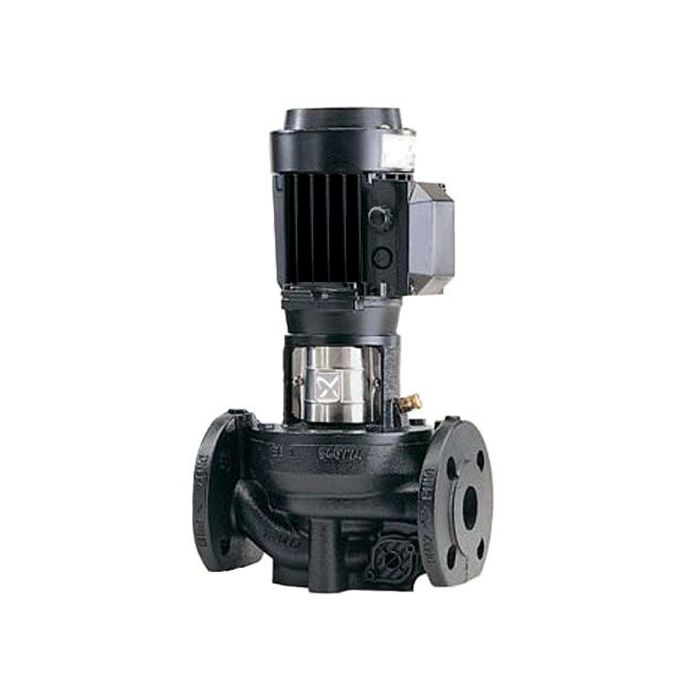

Grundfos TP 40-180/2 A F A BQQE Single Stage Single Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 0.55kW Motor and flanged connections.

Single-stage centrifugal in-line single-head pump:

neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
RP 40mm flanged Outlet

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98133671
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711490225617
Weight	28.3 Kg
Dimensions	390mm (h) x 250mm (w) x 200mm (d)
Connection Type	40mm Flanged
Motor Size	0.55kW
Full Load Current (FLC)	1.44 A
Voltage	415V 3Ph 50Hz
RPM	2860rpm
Max Flow	17m3/hr
Max Head	18m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Stainless Steel
