TP 200-190/4 A F A BQQE 18.5kW Single Stage Single Head In Line 4 Pole 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.

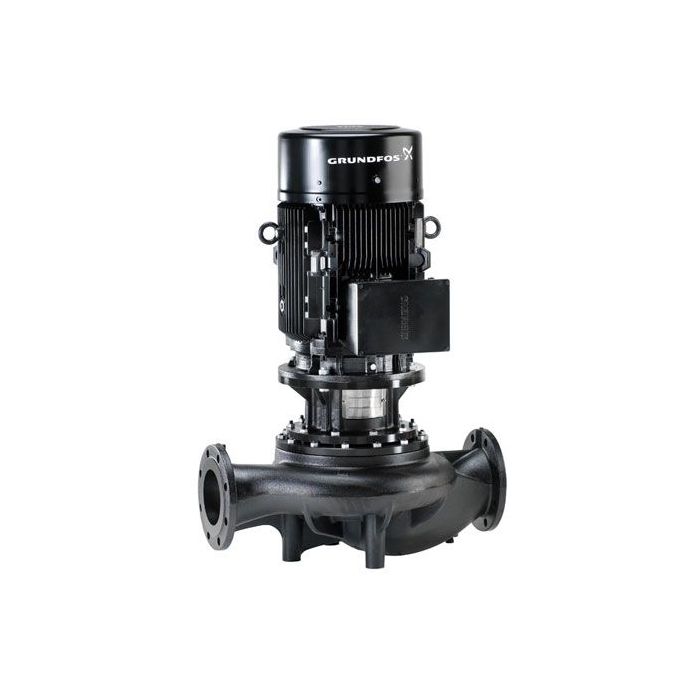

Grundfos TP 200-190/4 A F A BQQE Single Stage Single Head In-Line Pump with 4 Pole 415V 3Ph 50Hz, 18.5kW Motor and flanged connections.
Single-stage centrifugal in-line single-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- RP 200mm flanged Outlet
IMAGE FOR ILLUSTRATION PURPOSES ONLY.
SKU | 97927158 |
---|---|
Manufacturers | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5710626546817 |
Weight | 478.0 Kg |

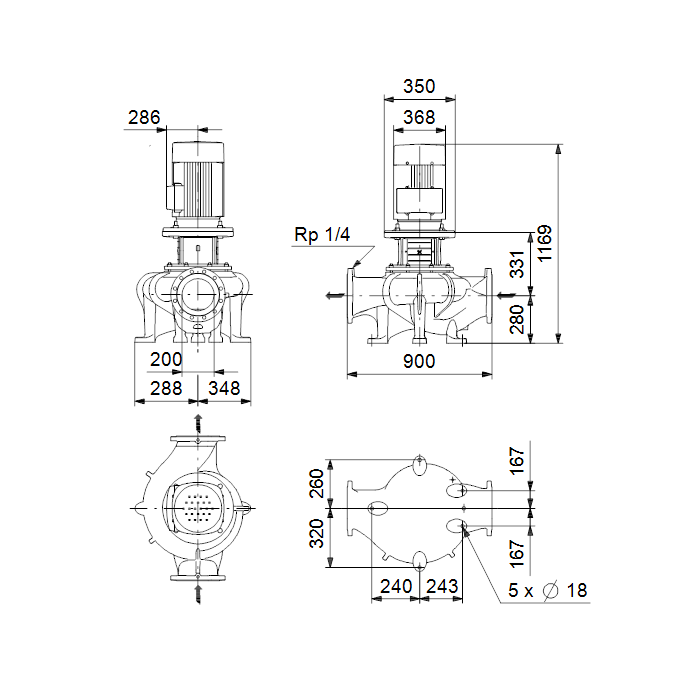

Dimensions | 1169mm (h) x 900mm (w) x 636mm (d) |
Connection Type | 200mm Flanged |
Motor Size | 18.5kW |
Voltage | 415V 3Ph 50Hz |
RPM | 1470rpm |

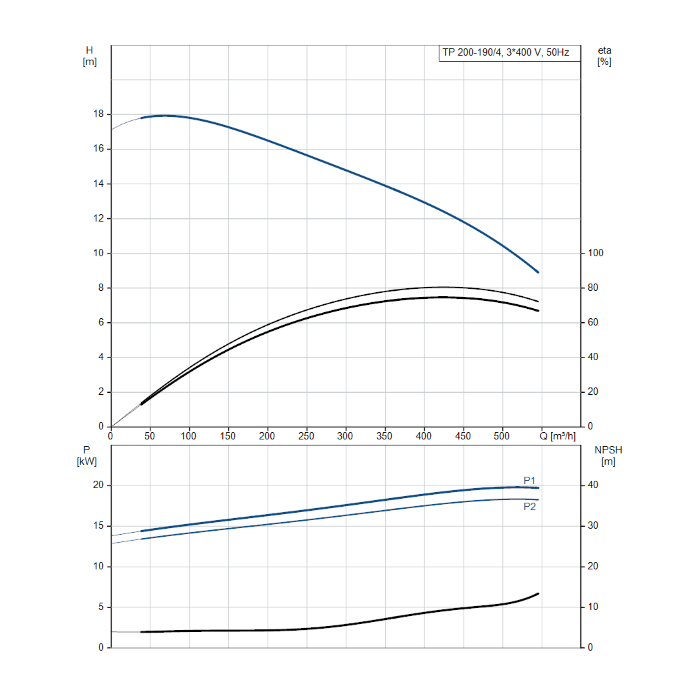

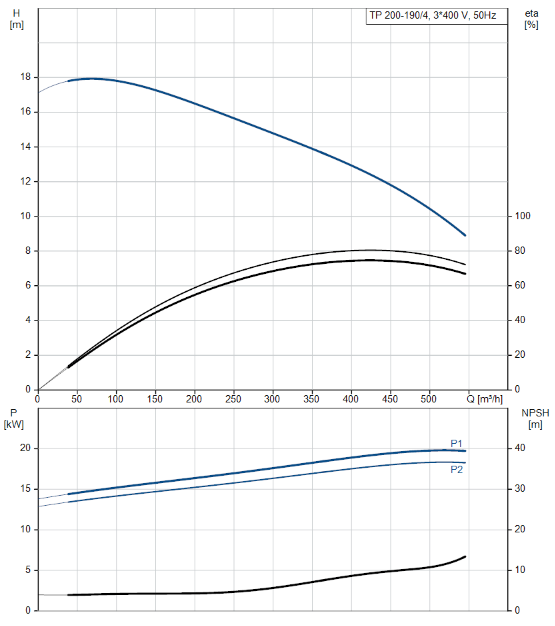

Max Flow | 547m3/hr |
Max Head | 19m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Cast Iron |
