TP 150-90/6 A F A BQQE 4kW Single Stage Single Head In Line 6 Pole 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Grundfos TP 150-90/6 A F A BQQE Single Stage Single Head In-Line Pump with 6 Pole 415V 3Ph 50Hz, 4kW Motor and flanged connections.
Single-stage centrifugal in-line single-head pump:
- neck rings and impeller made of cast iron
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- RP 150mm flanged Outlet

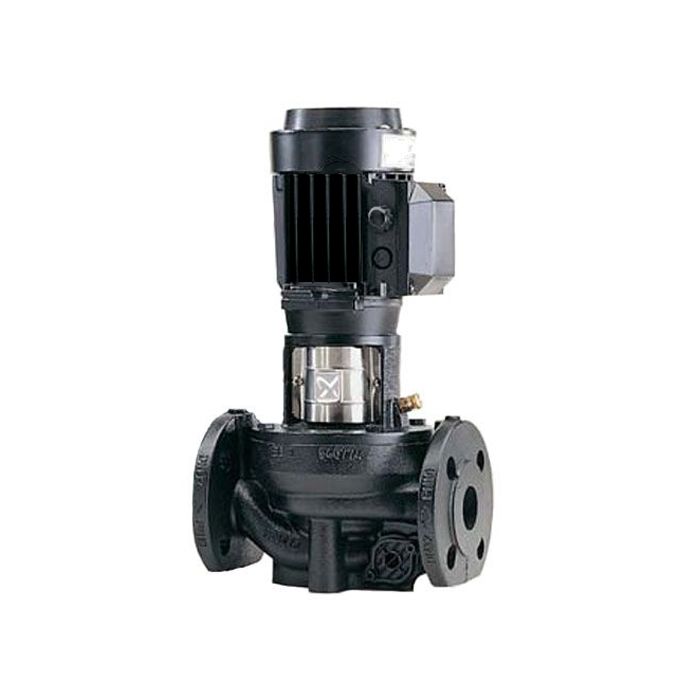

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
SKU | 96109995 |
---|---|
Manufacturers | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5700396989808 |
Weight | 289.0 Kg |

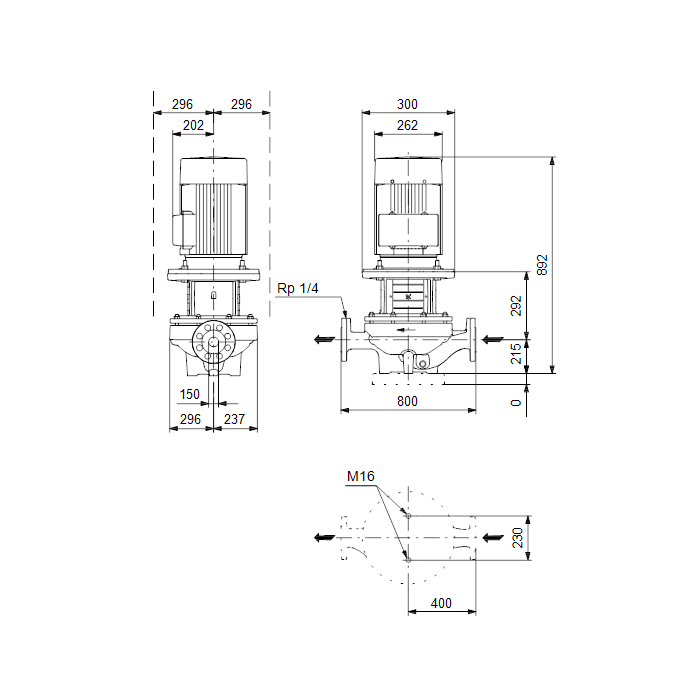

Dimensions | 892mm (h) x 800mm (w) x 533mm (d) |
Connection Type | 150mm Flanged |
Motor Size | 4kW |
Voltage | 415V 3Ph 50Hz |
RPM | 970rpm |
Max Flow | 199m3/hr |
Max Head | 9m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Cast Iron |
