TP 125-160/6 A F A BQQE 7.5kW Single Stage Single Head In Line 6 Pole 415v

Name: TP 125-160/6 A F A BQQE 7.5kW Single Stage Single Head In Line 6 Pole 415v
Brand: Grundfos
SKU: 98742626
Price: 5773 GBP
Availability: InStock

SKU

98742626

MRRP £9,953.00 + VAT Our price £5,773.00 (+ VAT) Incl. VAT: £6,927.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TP 125-160/6 A F A BQQE Single Stage Single Head In-Line Pump with 6 Pole 415V 3Ph 50Hz, 7.5kW Motor and flanged connections.

Single-stage centrifugal in-line single-head pump:

neck rings and impeller made of cast iron
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
RP 125mm flanged Outlet

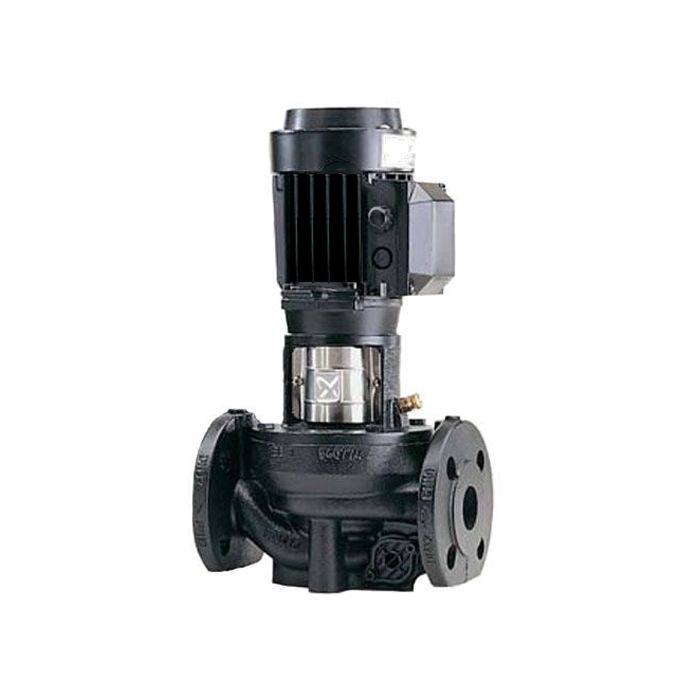

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98742626
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712600813472
Weight	330.0 Kg
Dimensions	1024mm (h) x 800mm (w) x 464mm (d)
Connection Type	125mm Flanged
Motor Size	7.5kW
Voltage	415V 3Ph 50Hz
RPM	975rpm
Max Flow	165m3/hr
Max Head	16m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Cast Iron
