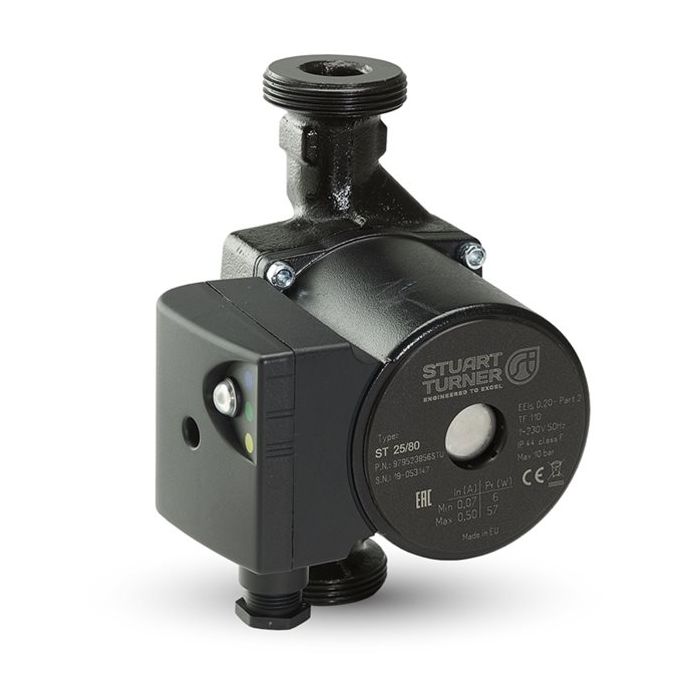

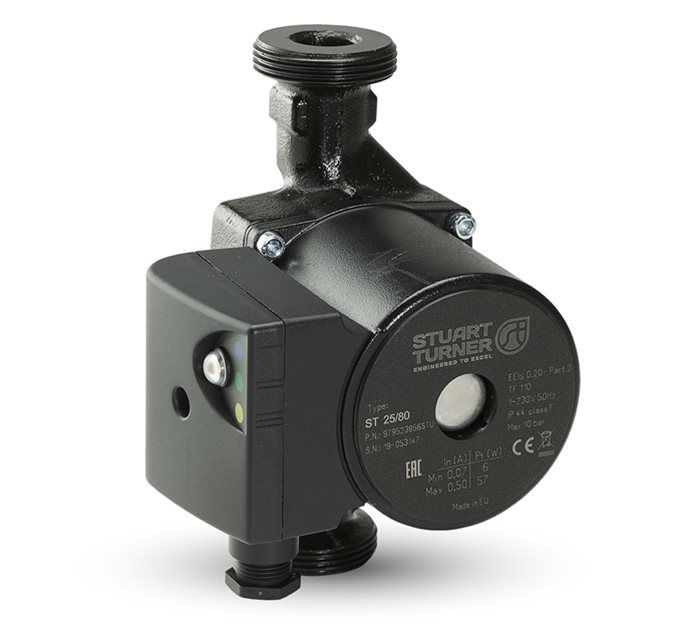

Stuart Turner ST 25/80 (180) Circulator 240v

Name: Stuart Turner ST 25/80 (180) Circulator 240v
Brand: Stuart Turner
SKU: 47075
Price: 180 GBP
Availability: InStock

SKU

47075

MRRP £294.00 + VAT Our price £180.00 (+ VAT) Incl. VAT: £216.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Include Iron Union Set

Include Brass Gate Valve Set

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

The Stuart ST 25/80 circulator features the latest in high efficiency technology offering an EEI rating of just 0.18 and proportional pressure control.
For use in new systems or as a replacement unit, this cast iron circulator is suitable for heating systems.

ECM permanent magnet technology

Constant speed (3 settings)

Proportional pressure control

Automatic venting cycle

Robust cast iron housing

Continuously rated

Ceramic bearings

180 mm fitting length

EuP/ErP compliant

This product is an ideal replacement for:

Grundfos: UPS2 25-80
Wilo: Yonos Pico 25/1/8
Dab: Evotron 80/180
Grundfos: UPS 25/55

More Information
SKU	47075
Manufacturers	Stuart Turner
Manufacturers Warranty	5 Years
Weight	2.4 Kg

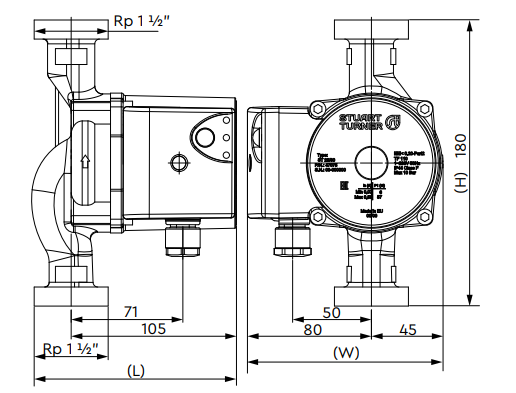

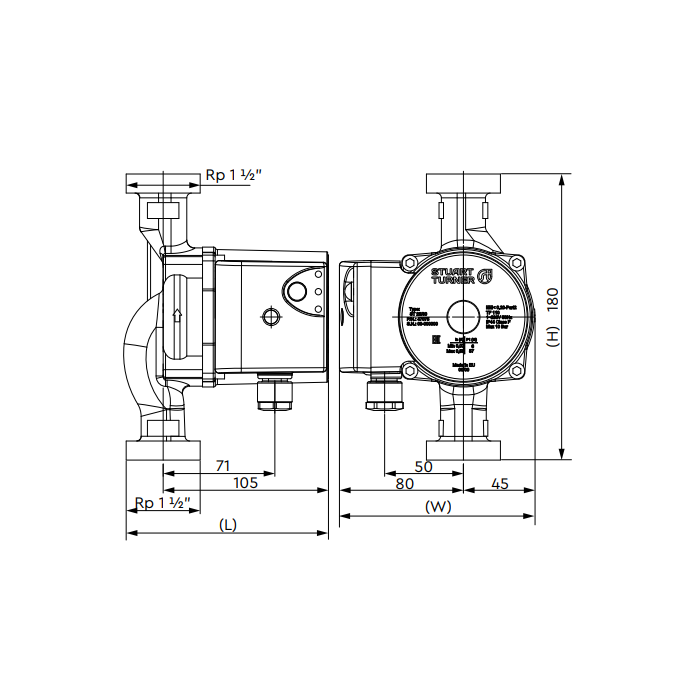

Dimensions	180mm Port to Port
Connection Type	1 1/2 Inch BSP
Motor Size	57 W
Full Load Current (FLC)	0.5 A
Voltage	240V 1Ph 50Hz
Max Flow	4.5m3/hr
Max Head	8m
Max Pressure	10 bar
Material	Cast Iron
Impeller Material	Noryl
