Stuart Turner Pulse D 40-100F (220) Variable Speed Twin Head Circulator 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

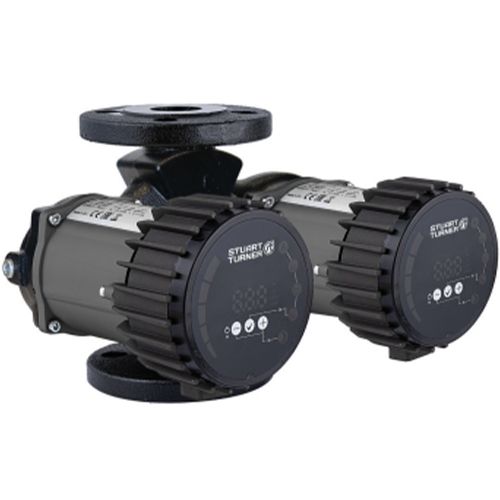

Stuart Turner Pulse D 40-100F (220) Variable Speed Twin Head Circulator 240v - 47428
Stuart Pulse Cast Iron Circulators are used for the transfer of water within systems for hot water heating, air-conditioning, and ventilation. These twin head variable speed circulators are designed to constantly monitor and regulate pressure and flow and adjust according to the set operating mode.
Features:
- Automatic, proportional pressure, constant pressure and constant speed operating modes
- Automatic night operation mode
- ECM permanent magnet technology
- Automatic venting cycle
- Robust cast iron housing
- Continuously rated
- Carbon-Graphite bearings
- 220mm fitted length
- DN40 flange connections
- ErP compliant
- Built-in over-current, temperature and overvoltage protection
- LED display control panel
- 2 year warranty
Applications:
- Hot-water heating systems
- Air conditioning and ventilation systems
| SKU | 47428 |
|---|---|
| Manufacturers | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| GTIN | 5050400474289 |
| Weight | 11.0 Kg |
| Dimensions | 220mm (h) x 297mm (w) x 249mm (d) |
| Connection Type | 40mm Flanged |
| Full Load Current (FLC) | 1.5A x 2 |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 11.8m3/hr |
| Max Head | 10.5m |
| Max Pressure | 10 Bar |
| Max Temperature | -10°C to 110°C |
| Material | Cast Iron |
| Impeller Material | Polyethersulfone |
