Stuart Turner Pulse 32-100F (220) Variable Speed Circulator 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Stuart Turner Pulse 32-100F (220) Variable Speed Circulator 240v - 47411
Stuart Pulse Cast Iron Circulators are used for the transfer of water within systems for hot water heating, air-conditioning, and ventilation. These single head variable speed circulators are designed to constantly monitor and regulate pressure and flow and adjust according to the set operating mode.
Features:
- Automatic, proportional pressure, constant pressure and constant speed operating modes
- Automatic night operation mode
- ECM permanent magnet technology
- Automatic venting cycle
- Robust cast iron housing
- Continuously rated
- Carbon-Graphite bearings
- 220mm fitted length
- DN32 flanged connection
- ErP compliant
- Built-in over-current, temperature and over-voltage protection
- LED display control panel
- 2 year warranty
Applications:
- Hot-water heating systems
- Air conditioning and ventilation systems
SKU | 47411 |
---|---|
Manufacturers | Stuart Turner |
Manufacturers Warranty | 2 Years |
GTIN | 5050400474111 |
Weight | 6.4 Kg |

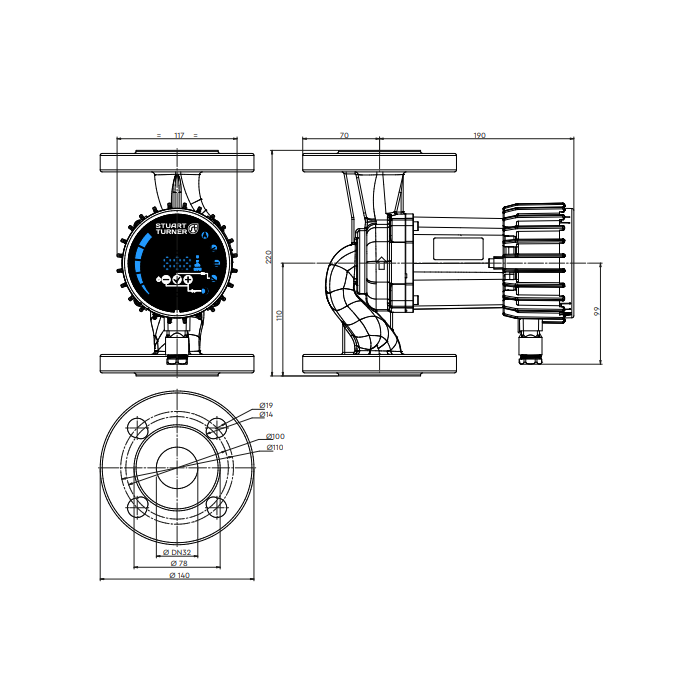

Dimensions | 220mm (h) x 140mm (w) x 260mm (d) |
Connection Type | 32mm Flanged |
Full Load Current (FLC) | 1.5A |
Voltage | 240V 1Ph 50Hz |
Max Flow | 11.8m3/hr |
Max Head | 10.5m |
Max Pressure | 10 Bar |
Max Temperature | -10°C to 110°C |
Material | Cast Iron |
Impeller Material | Polyethersulfone |
