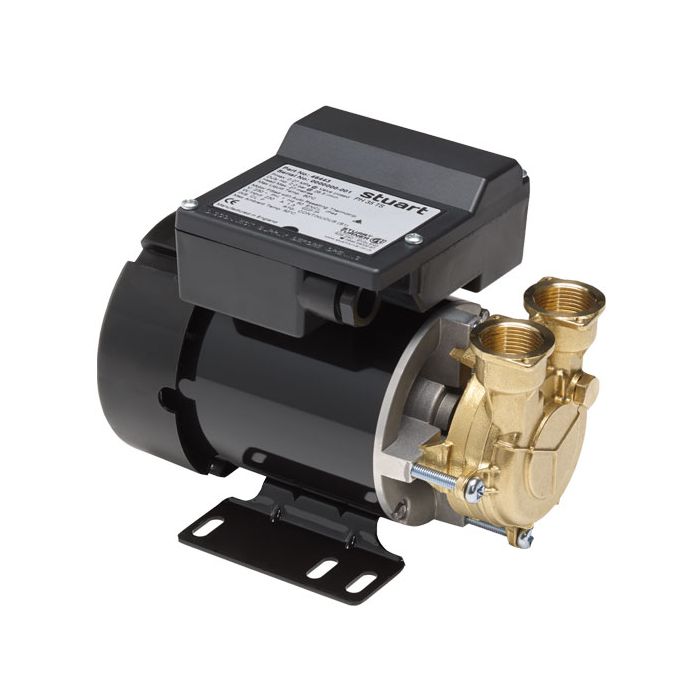

Stuart Turner PH 45 TS Brass Peripheral Booster Pump c/w Vent Plug (Brass Impeller - EPDM/PTFE/Al.Oxide Seals) 240V

SKU
46504
MRRP £298.00 + VAT Our price £220.00 (+ VAT) Incl. VAT: £264.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

 The PH TS range of peripheral pumps with vertical suction and delivery are designed for continuous operation at 2.5 l/min and above and offer a number of  seal and motor options to meet your requirements. A horizontal suction range (ES range) is also available.

The PH TS range is particularly suitable where space is at a premium to pump clean, fresh water. Other clean non aggressive, non explosive liquids with similar characteristics to water may be pumped. Please contact our Sales office for such applications.

Seal arrangements for the PH 35 and 45 TS are:

  • EPDM/PTFE /Al.Oxide

  • Viton/Carbon/Silicone

This pump has EPDM/PTFE /Al.Oxide seals and G 3/4" female screwed inlet/outlet connections.

The Stuart Turner commercial range of pumps have a 1 year warranty.

More Information
SKU 46504
Manufacturers Stuart Turner
Manufacturers Warranty 2 Years
GTIN 5050400465041
Weight 6.2 Kg
Dimensions 166mm High x 130mm Wide x 238mm Deep
Motor Size 0.6kW
Full Load Current (FLC) 2.6A
Voltage 240V 1Ph 50Hz
Max Flow 44 l/min
Max Head 42m
Max Pressure 600 kPa (6 bar)
Material Brass
Seal Type EPDM/PTFE/Al.Oxide
Impeller Material Brass
