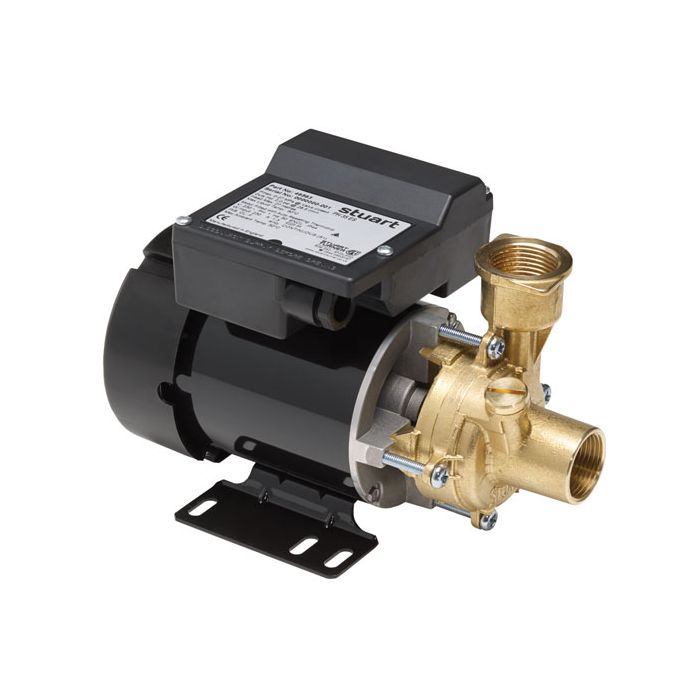

Stuart Turner PH 45 ES Brass Peripheral Booster Pump (Brass Impeller - Vit/Car/Sil Seals) 240V

SKU
46454
MRRP £404.00 + VAT Our price £259.00 (+ VAT) Incl. VAT: £310.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The PH ES range of peripheral pumps with horizontal suction and vertical delivery are designed for continuous operation at 2.5 l/min and above, and offer a number of seal and motor options to meet your requirements.  A vertical suction range (ES range) is also available.

The range of PH ES peripheral pumps is designed to pump clean, fresh water.  Other clean, non aggressive, non explosive liquids with similar characteristics to water may be pumped.  The PH ES range can be used for pressure boosting, fluid transfer and distribution.  They are suitable for flooded suction applications. Alternatively a maximum suction lift of 4.6 m is permitted when using a Stuart footvalve/strainer.

Seal arrangements for PH 35 ES/ 45 ES are:

  • EPDM/PTFE/Al. Oxide
  • Viton/Carbon/Silicone

This pump has Viton/Carbon/Silicone seals and G 1" female screwed inlet/outlet connections.

The Stuart Turner commercial range of pumps have a 1 year warranty.

More Information
SKU 46454
Manufacturers Stuart Turner
Manufacturers Warranty 2 Years
GTIN 5050400464549
Weight 6.5 Kg
Dimensions 166mm High x 130mm Wide x 220mm Deep
Motor Size 0.66kW
Full Load Current (FLC) 2.9A
Voltage 240V 1Ph 50Hz
Max Flow 40 l/min
Max Head 42m
Max Pressure 600 kPa (6 bar)
Material Brass
Seal Type Vit/Car/Sil
Impeller Material Brass
