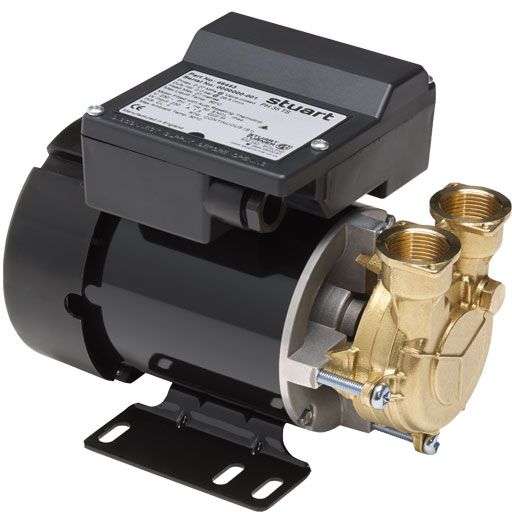

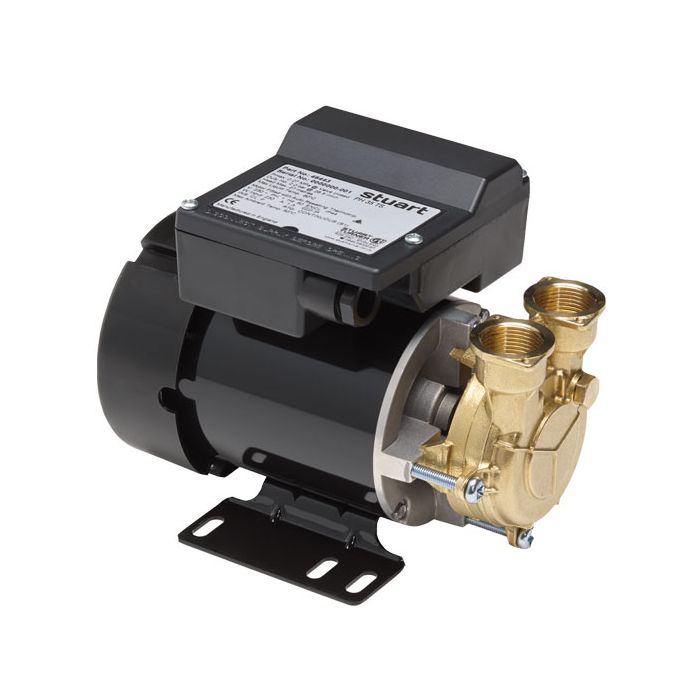

Stuart Turner PH 35 TS Brass Peripheral Booster Pump c/w Vent Plug (Brass Impeller - EPDM/PTFE/Al.Oxide Seals) 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
The PH TS range of peripheral pumps with vertical suction and delivery are designed for continuous operation at 2.5 l/min and above and offer a number of seal and motor options to meet your requirements. A horizontal suction range (ES range) is also available.
The PH TS range is particularly suitable where space is at a premium to pump clean, fresh water. Other clean non aggressive, non explosive liquids with similar characteristics to water may be pumped. Please contact our Sales office for such applications.
Seal arrangements for the PH 35 and 45 TS are:
-
EPDM/PTFE/Al. Oxide
-
VIT/CAR/SIL
-
NIT/CAR/CER
This pump has EPDM/PTFE/Al. Oxide seals and G 3/4 female" female screwed inlet/outlet connections.
The Stuart Turner commercial range of pumps have a 1 year warranty.
| SKU | 46496 |
|---|---|
| Manufacturers | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| GTIN | 5050400464969 |
| Weight | 4.8 Kg |
| Dimensions | 166mm High x 130mm Wide x 209mm Deep |
| Motor Size | 0.41kW |
| Full Load Current (FLC) | 1.8A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 34 l/min |
| Max Head | 30m |
| Working Pressure | 600 kPa (6 bar) |
| Material | Brass |
| Seal Type | EPDM/PTFE/Al.Oxide |
| Impeller Material | Brass |
