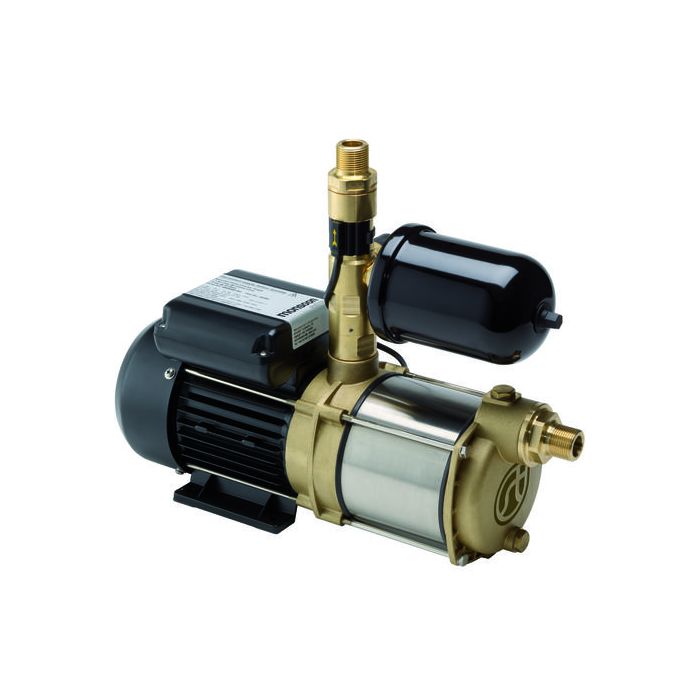

Stuart Turner CH 4-50 B 5.0 Bar Universal Neg Head Booster Pump 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
The CH 4 range of centrifugal multistage pumps are built to provide a high quality and reliable solution for applications that require high flow rates of up to 160 l/min and heads up to 62 metres.
The range includes 4 base pumps suitable for independent switching.
Application
- The CH 4 range of pumps are the ideal base unit for pressure boosting sets or for applications where long pipe runs or high heads may be involved
- The range is suitable for commercial or domestic use, pumping hot or cold water
- Self priming up to 5m
- Quiet operation
- Easy to install
The CHM range comes with a 2 Year Warranty.
| SKU | 46595 |
|---|---|
| Manufacturers | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| GTIN | 5050400465959 |
| Weight | 19.9 Kg |
| Dimensions | 469mm Long x 187mm Wide x 332mm High |
| Motor Size | 1630W |
| Full Load Current (FLC) | 7.3A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 100 l/min |
| Max Head | 50m (5.0 Bar) |
| Max Pressure | 9 Bar |
| Max Temperature | 65°C |
| Material | Brass |
| Seal Type | EPDM / Carbon / Ceramic |
