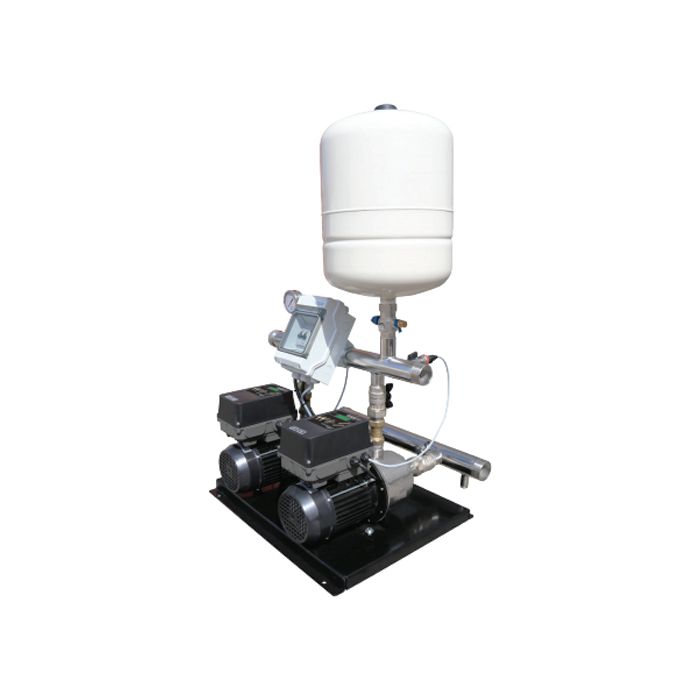

iBolt 05 Range - Twin Pump Booster Set AQUABOOST
The Aquaboost iBolt range of twin pump booster sets features two horizontal multistage pumps controlled by air-cooled variable speed frequency inverters mounted directly on the pump motors. The twin pump 05 range includes 0504, 0506 and 0508 pump variants capable of delivering flow rates up to 8.0 m³/hour (per pump) and capable of producing head pressures of up to 9.2 bar.
Features
• Flow rates up to 16.0 m3/h
• Head pressure up to 9.2 bar
• Dry run protection
• 304 stainless steel pumps
• 304/316 stainless steel manifold assembly
• Nickel plated WRAS approved ball valves
• Union fittings on suction and discharge
• WRAS approved 24 litre pressure vessel
• Air cooled inverters
• Glycerine filled pressure gauge
• Powder coated base plate
• BMS volt free contacts
| SKU | 47356 |
|---|---|
| Manufacturers | Stuart Turner |
| Manufacturers Warranty | 2 Years |
| Weight | 59.0 Kg |
| Inlet Dimension | 2" |
| Discharge Dimension | 1 1/2" |
| Full Load Current (FLC) | 11.0 A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 16.0 m3/h |
| Max Head | 7.0 bar |
| Max Pressure | 1 bar |
| Max Temperature | 40°C |
| Material | Stainless Steel |
| Seal Type | EPDM/Carbon/Ceramic |
| Country of Manufacture | United Kingdom |
