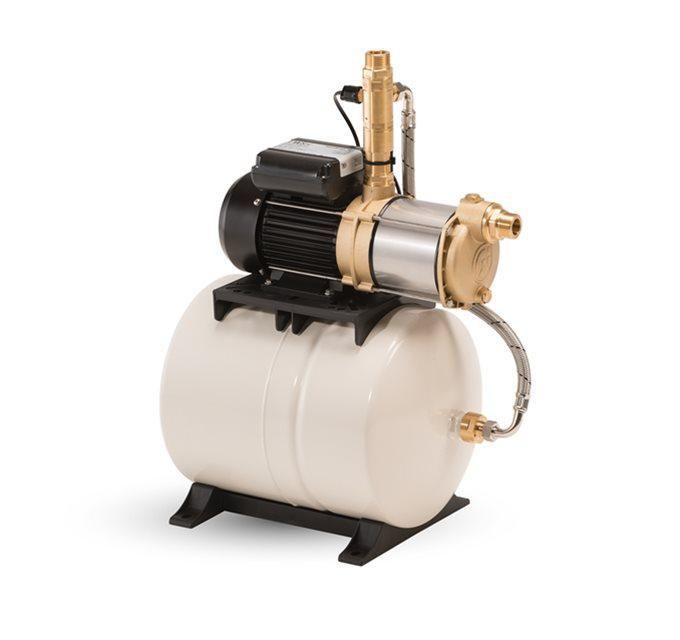

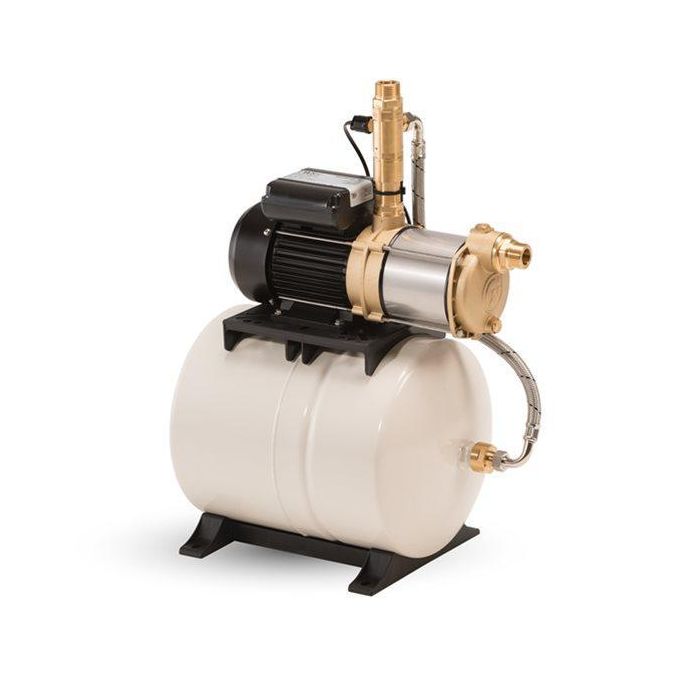

Stuart Turner Aquaboost CH 4-40 PS Pressure Set 240Volt (F120-40)
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Centrifugal Pressure Set
Designed to meet system demands in larger domestic and light commercial applications. The CH multistage pump is mounted on to a WRAS Approved 24 litre diaphragm tank providing a buffer of pressurised stored water. CH Pressure sets are ideally suited to boosting stored cold water supplies to un-vented hot water cylinders/combination boilers. Supplied with G 1 flexible hoses and adaptors.
Key Features

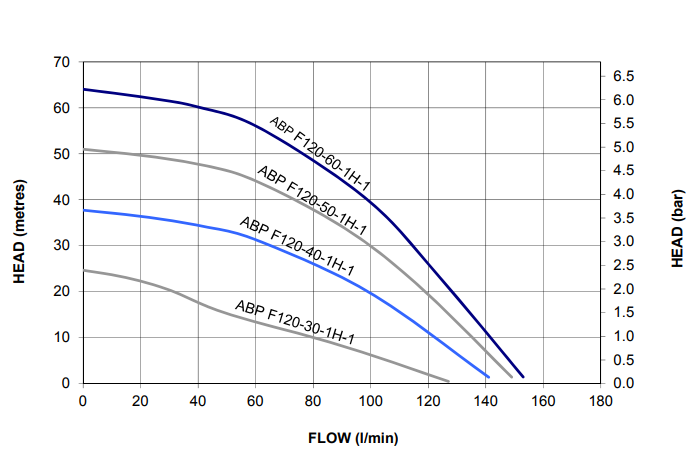

- Flow rates up to 141 litres per minute and heads up to 37 metres
- Fully automatic control
- No pulsing during operation
- Durable brass and stainless steel construction
- Multistage centrifugal pump
- Extended life mechanical seal
- Quiet operation
- WRAS Approved Product
- Continuously rated induction motor
- Dry run protection
- Includes 24 litre WRAS Approved diaphragm tank
- G 1 Flexible hoses included
- 2 year guarantee
| Manufacturers | Stuart Turner |
|---|---|
| SKU | 46602 |
| Weight | 22.3 Kg |
| GTIN | 5050400466024 |
| Dimensions | 541mm Long x 300mm Wide x 602mm High |
| Material | Brass |
| Voltage | 240V 1Ph 50Hz |
| Motor Size | 1136W |
| Bar Rating | 3.6 Bar |
| Max Flow | 120 l/min |
| Max Head | 36m (3.5 Bar) |
| Seal Type | EPDM / Carbon / Ceramic |
| System Type | Positive |
| Impeller Type | Single Impeller |
| Pipe Size | 25 mm |
