Simplex UP M/3 110 Single Pump Control Panel 110v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

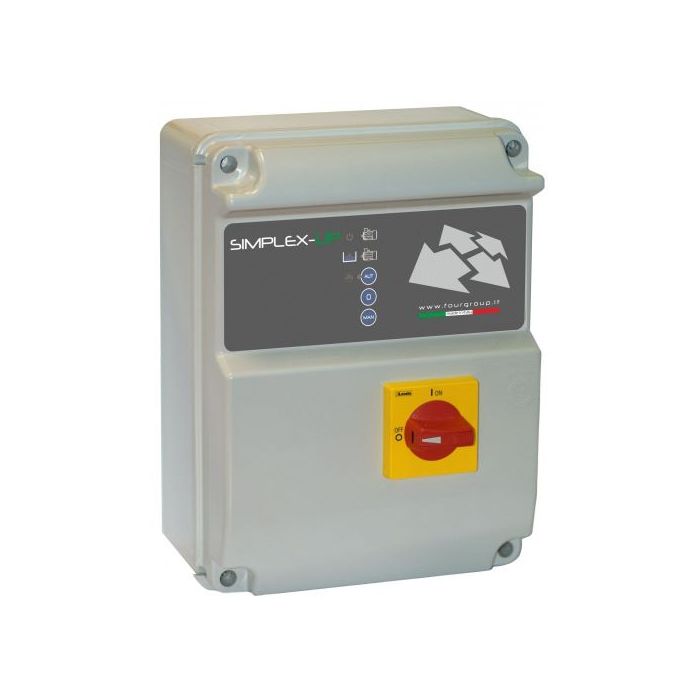

Simplex UP M/3 110 Single Pump Control Panel 110v - 021-007
Simplex control panels for one pump control of sump pumps, booster pumps or borehole pump. Operation by floats, pressure switches or level probes.
Provision for klixon connections and a 12 Volt DC Alarm control circuit.
Plastic ABS boxes and IP55 Rated.
Optional Extra's - High Level Alarm Equipment; 12 Volt AC/DC 22mm Panel Sounder / Continuous lit lamp IP20, Flashing Beacon Sounder 12/24v DC
Features:
- single pump control
- optional alarm features
- operation by probes, floats and pressure switch
Applications:
- pump stations
- booster sets
- wells and boreholes
| SKU | 021-007 |
|---|---|
| Manufacturers | JS Pumps |
| Manufacturers Warranty | 1 Year |
| Weight | 1.9 Kg |
| Dimensions | 340mm (h) x 240mm (w) x 170mm (l) |
| Motor Size | 0.37kW - 2.2kW |
| Full Load Current (FLC) | 2A - 16A |
| Voltage | 110V 1Ph 50Hz |
