ProMinent Sigma2 Motor Driven Pump 271l/hr

SKU
S2CB07220PVTS000U181000EN
MRRP £5,273.04 + VAT Our price £4,218.00 (+ VAT) Incl. VAT: £5,061.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

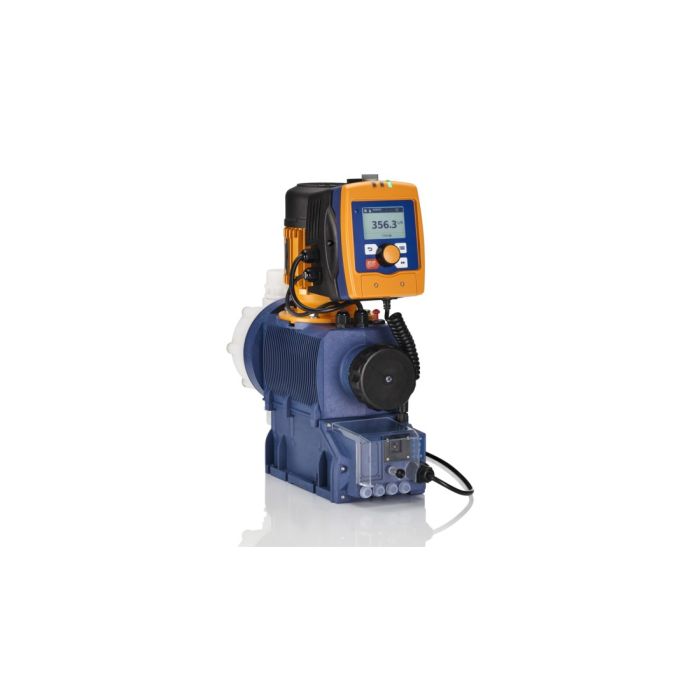

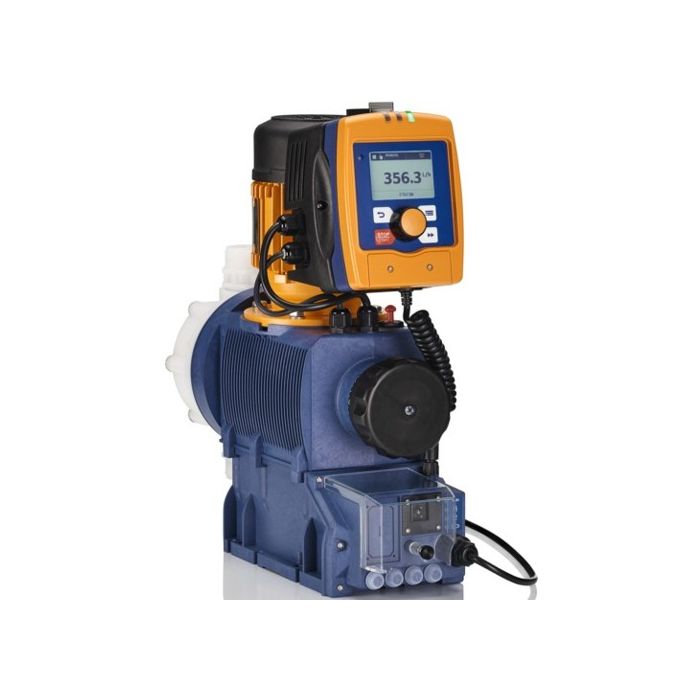

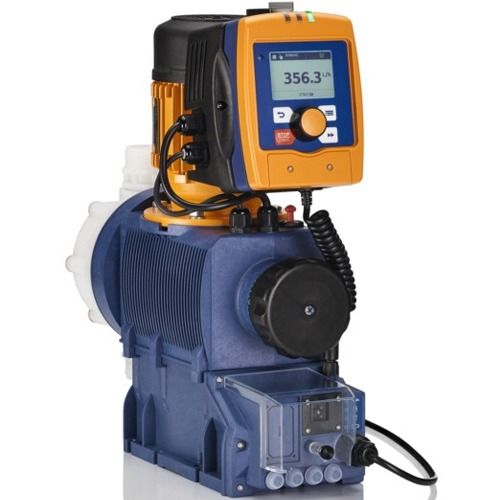

ProMinent Sigma2 Motor Driven Pump 271l/hr output at upto 7bar back pressure, PVDF/PTFE chemicaly resistant liquid end. Inlcudes fault indicating alarm relay, visual diaphragm rupture indicataion & pulse/analogue contr

The new Sigma X range – reliable, smart and connectible

The Sigma X diaphragm metering pump covers a capacity range of 21 to 1,040 l/h in versions S1Cb, S2Cb and S3Cb. Its patented multi-layer safety diaphragm guarantees maximum process reliability. Efficient protection of the power end from overloading by means of an integral frequency converter with microprocessor control(ler).

One highlight is the standardised operating concept with click wheel and 4 additional operating keys on a removable operating unit. A large illuminated LCD and a 3-LED display for operating, warning and error messages, visible from all sides, offers additional operating convenience.

The Sigma, like all smart ProMinent metering pumps, can be flexibly connected to various bus systems.

It has a large adjustment range thanks to a combination of frequency and stroke length adjustment. The pump works with high precision across the entire frequency range. Accurate and complication-free metering of viscous and gaseous media by adjustment of the movement profile.

Operating statuses are simply remotely transmitted via an additional output or relay module. A built-in timer, included as standard, controls time-dependent metering cycles.



More Information
SKU S2CB07220PVTS000U181000EN
Manufacturers ProMinent
Manufacturers Warranty 2 Years
Weight 18.8 Kg
Dimensions 165mm x 446mm x 465mm
Motor Size 0.25kW
Full Load Current (FLC) 4A
Voltage 415V 3Ph 50Hz
Cable Length 2mtr
Max Flow 271l/hr
Max Head 7bar
Material Kynar (PVDF)
Seal Type PTFE
