Pentax CM 32-200A 7.5kW End Suction Centrifugal Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Pentax CM 32-200A 7.5kW End Suction Centrifugal Pump 415v - 573-9KKK
Pentax CM Pumps are made up of single stage electric monobloc pumps with a flanged hydraulic motor connection. The pump casing is manufactured in accordance with the provisions of DIN 24255-NF E 44 III-UNI 7476 standards, regarding hydraulic dimensions and connections points. The pumps may be installed in all positions, except where the suction point is directed downwards. The design of these pumps allows the rotating parts and the motor to be removed from the pump casing without having to disconnect the pipes. Thus any maintanance is easily and quickly performed.
Cast iron pump casing, motor bracket and impeller. Stainless steel shaft. Mechanical seal with ceramic/graphite counterfaces. Flanged connection points DN32 & DN50 2236 PN10 standards. Thread type counter flanges UN12254.
Clean water pumping only, non aggresive, non explosive and free from abrasives and fibres. Liquid temperature from -10°C to 90°C. Enviromental temperature up to 40°C max.
Applications:
- irrigation supply
- heating and air conditioning systems
- water supply
- liquid transfer
- fire fighting systems
**Counter flanges are included with this pump**
| SKU | 573-9KKK |
|---|---|
| Manufacturers | Pentax |
| Manufacturers Warranty | 1 Year |
| Weight | 79.0 Kg |

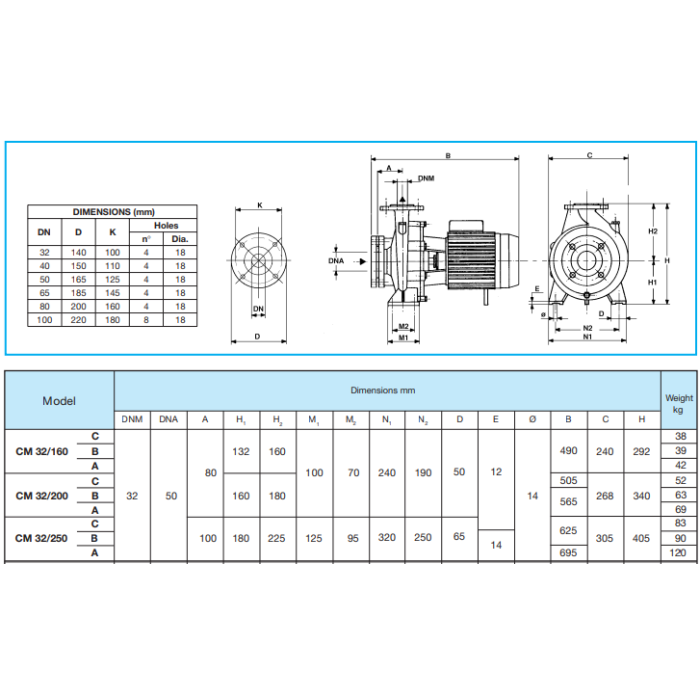

| Dimensions | 340mm (h) x 565mm (w) x 268mm (d) |
| Inlet Dimension | 50mm 2" BSP Female |
| Discharge Dimension | 32mm 1¼" BSP Female |
| Motor Size | 7.5kW |
| Full Load Current (FLC) | 14.1A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900rpm |
| Max Flow | 33m3/hr |
| Max Head | 59m |
| Max Temperature | 90°C |
| Material | Cast Iron |
| Seal Type | Ceramic-Graphite-NBR |
