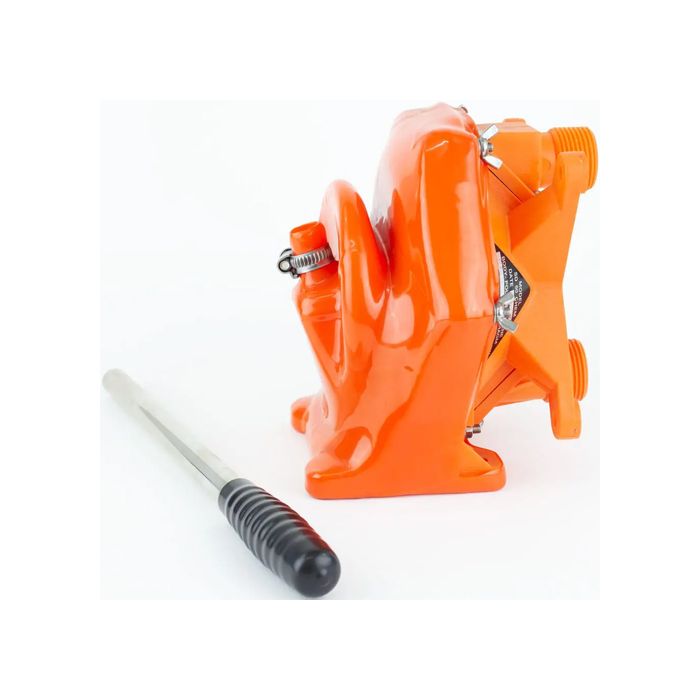

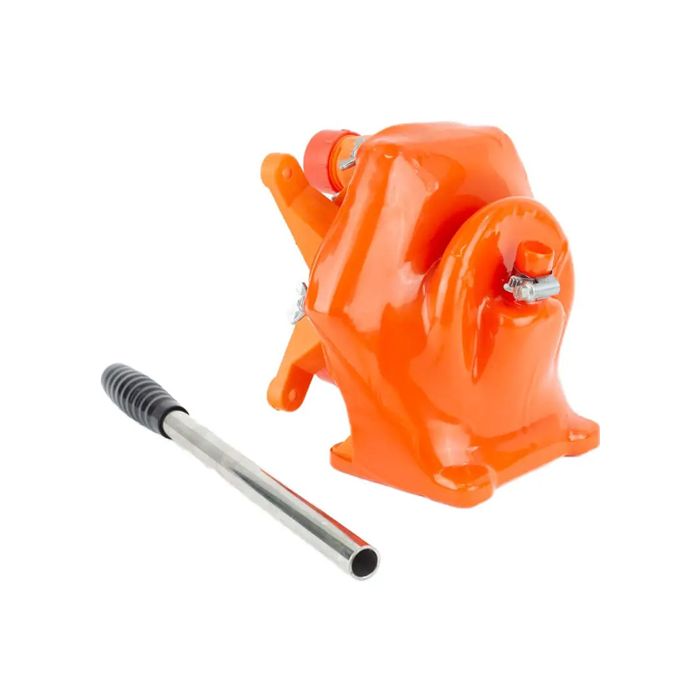

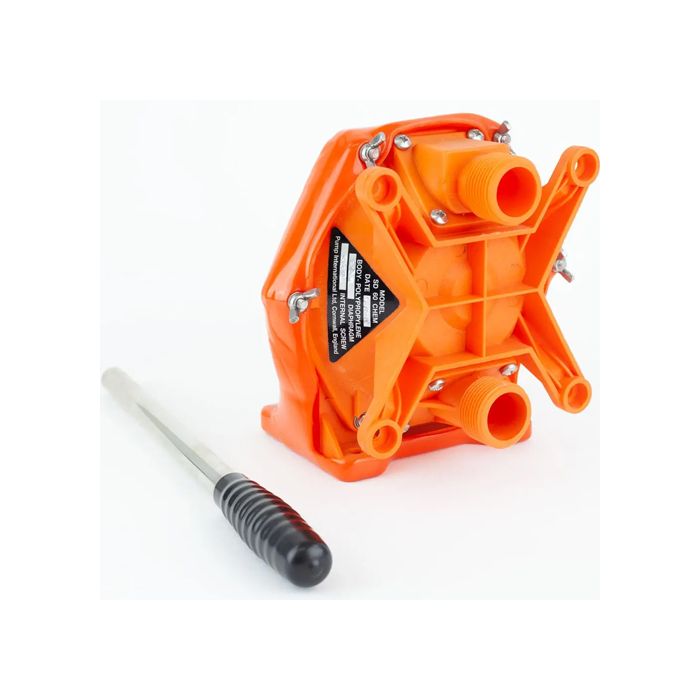

Patay SD60 Manual Hand Chemical Pump - Nitrile A2052 Diaphragm
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
The SD60 Chemical pump is a variation of the SD60 Skipper, designed with safety in mind, it has the addition of a PVC Deflector encompassing the pump allowing it to withstand the harshest of environments. It has been designed for compatibility with a wide range of aggressive substances, the variations of this pump can accommodate over 500 chemicals. The body is made from Polypropylene which has a broad chemical resistance for use in a wide variety of chemical applications. It is rated excellent (A) for use with acid and caustic solutions.
The Patay SD60 Chemical Pump body and ports can be positioned 96 different ways for maximum flexibility of installation. The pump can be wall or base mounted as the ports can be rotated through 90 degrees.
Nitrile Diaphragm and Valves – Nitrile rubber is favoured for its abrasion resistance, it has good rebound and tear resistant qualities. It is widely used for the transfer of mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkaline.
The fastenings are Stainless Steel. The element Chromium gives Stainless Steel excellent resistance to corrosion, sterilizing solutions and man-made chemicals. It is recommended for outside/external applications, however, it can discolour over time. The internal screw is made from Hastelloy. Hastelloy is a solid-solution-strengthened nickel-chromium-iron-molybdenum alloy that has good oxidation resistance, high temperature strength and excellent stress corrosion resistance.
| SKU | A2052 |
|---|---|
| Manufacturers | Anchor |
| Manufacturers Warranty | 1 Year |
| Weight | 2.0 Kg |
| Dimensions | 17cm × 15cm × 17cm |
| Connection Type | 1 Inch BSP Male |
| Inlet Dimension | 1" Male |
| Discharge Dimension | 1" Male |
| Max Flow | 66l/min |
| Max Head | 4.5m |
| Material | Polypropylene |
| Country of Manufacture | United Kingdom |
