NB 80-315/334 A F A E BQQE Single Stage End Suction 1450RPM 22kW Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Grundfos NB 80-315/334 A F A E BQQE Single Stage End Suction Bloc Pump with 4 Pole and 1450rpm Motor 415V 3Ph 50Hz, 22kW Motor
Single-stage end suction bloc pump:
- Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
- Flanges are PN 16 with dimensions according to EN 1092-2.
- The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
- The unbalanced rubber bellows seal is according to DIN EN 12756.
- The pump is close-coupled to a fan-cooled asynchronous motor.
- For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
- Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
- 80mm outlet and 100mm inlet.
- A flange kit comprising of two sets of flanges is required, see related accessories for options.
SKU | 98868112 |
---|---|
Manufacturers | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5712602656756 |
Weight | 346.0 Kg |

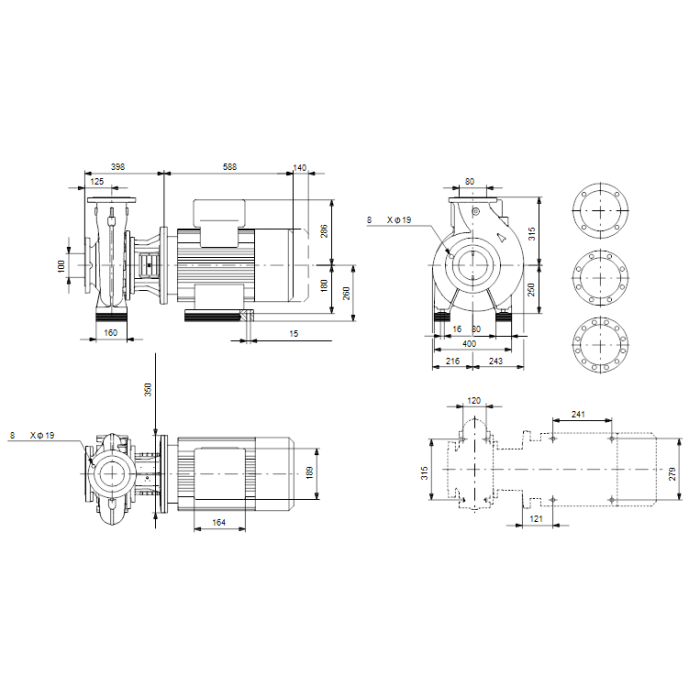

Dimensions | 1126mm (w) x 565mm (h) x 459mm (d) |
Inlet Dimension | 100mm Flanged |
Discharge Dimension | 80mm Flanged |
Motor Size | 22 kW |
Full Load Current (FLC) | 24.6-23.6 A |
Voltage | 415V 3Ph 50Hz |
RPM | 1470rpm |
Max Flow | 184m3/hr |
Max Head | 40m |
Max Temperature | 120°C |
Material | Cast Iron |
Impeller Material | Cast Iron |
