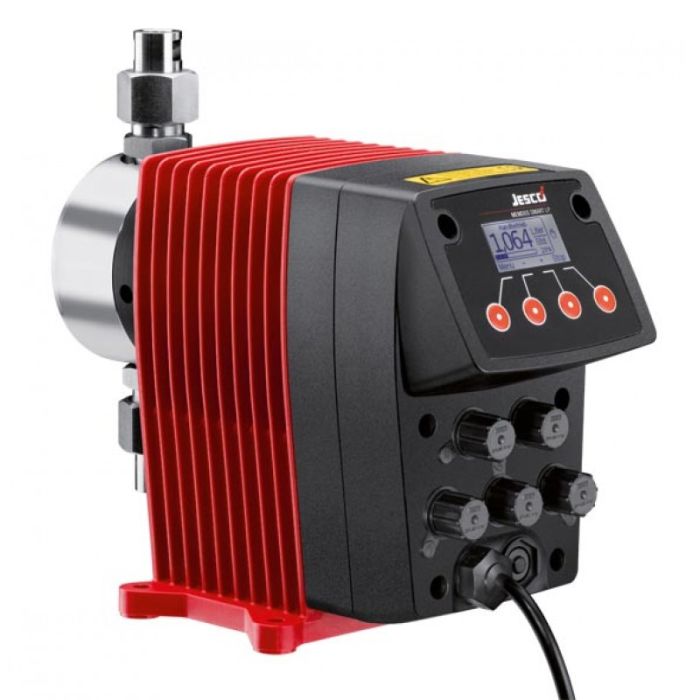

Lutz-Jesco Memdos Smart LP10 Stepper Pump 10.8l/h
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
MEMDOS SMART LP
Precision that inspires
The compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump.
The MEMDOS SMART LP series is available in five capacity ranges. The MEMDOS SMART LP's drive is fully adjustable. For integration into demanding automation networks, a version with an Ethernet-based MODBUS interface is available.
- Capacity range 2.4 – 19.2 l/h, up to 20 bar
- Power supply 110 – 240 V, 50/60 Hz, IP65, 25 W
- Microprocessor controlled drive
- Integrated dosing head venting facility (only MEMDOS SMART LP 2, LP 5 and LP 10 with dosing head made of plastic)
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF and stainless steel
- Stroke frequency can be precisely adjusted via the keyboard
- Graphic display with multi-language menu
- Analogue input and pulse input (increase and reduction)
- Level input with early warning and main alarm
- Release input for external start/stop
- Supply amount displayed in various units
- Maximum delivery rate can be limited
- Diaphragm replacement programme
- 2 Slow Motion modes for dosing viscous media
- Stroke feedback output
- Alarm relay output
- Batch dosing with interval and timer functions
- Dosing control input
- Diaphragm rupture input for leak monitoring
- Ethernet interface (optional)
- CSA and UL certified
SKU | 10101005 |
---|---|
Manufacturers | Lutz-Jesco |
Manufacturers Warranty | 2 Years |
Weight | 2.2 Kg |
Dimensions | 116mm x 211mm x 260mm |
Motor Size | 25W |
Full Load Current (FLC) | 0.1-0.23A |
Cable Length | 1.8m |
Max Flow | 10.8l/h |
Max Head | 9bar |
Material | PVC/G/FPM |
