Lutz-Jesco Magdos LB 4 Solenoid Pump 3.4l/hr (Ex 10211005)
SKU
10211403
MRRP
£475.20
+ VAT
Our price
£404.00
(+ VAT)
Incl. VAT: £484.80
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Hours
Mins
Secs
* Available where Guaranteed Stock Icon Appears Below

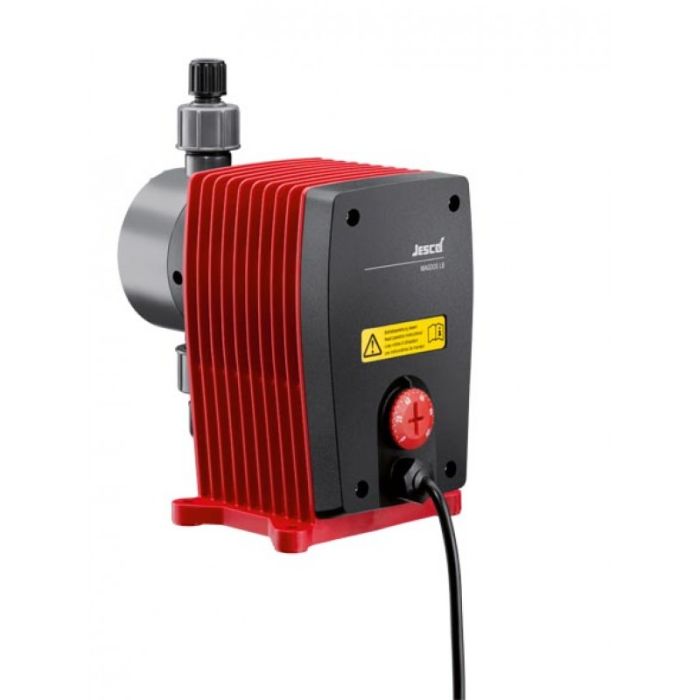

MAGDOS LB
Simple dosing pump in newest generation
The MAGDOS LB solenoid-diaphragm dosing pump is a good-value alternative for simple and continuous dosing tasks. It is especially suitable for water treatment and the process industry. MAGDOS LB is available for seven capacity ranges. Double-ball valves ensure an accurate dosing. The dosing capacity can be adapted continuously from 0 – 100% through the stroke frequency. MAGDOS is a compact solution which only includes the most important elements for reliable dosing.

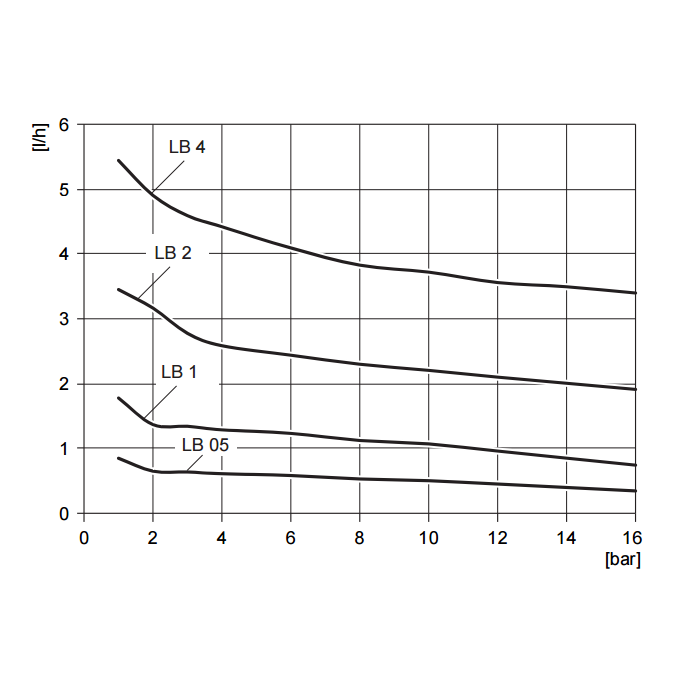

- Output range from 0.5 – 15 l/h, up to 16 bar
- Long-range power supply unit 110 – 240 V, 50/60 Hz, IP65
- Dosing head ventilation
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF
- Infinitely variable dosing rate from 0 – 100 %
- CSA and UL certified
| SKU | 10211403 |
|---|---|
| Manufacturers | Lutz-Jesco |
| Manufacturers Warranty | 2 Years |
| Weight | 3.2 Kg |

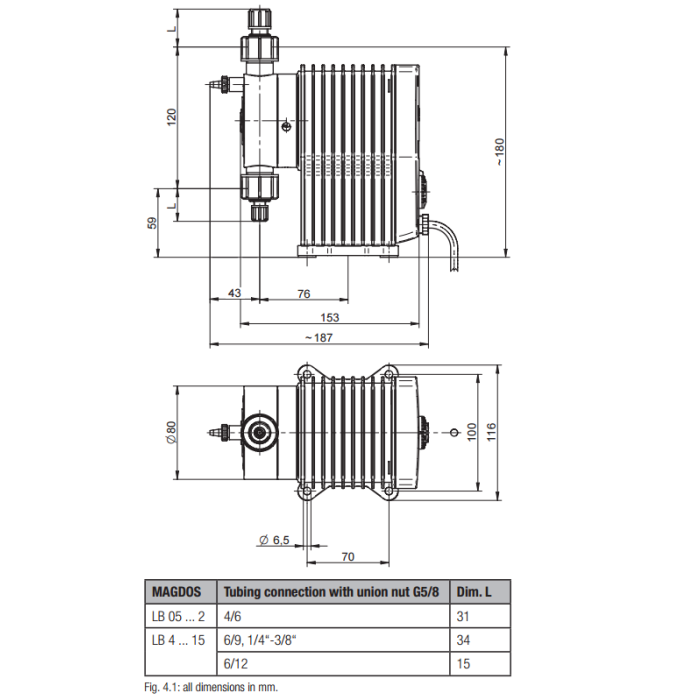

| Dimensions | 116mm x 187mm x 211mm |
| Motor Size | Solenoid |
| Full Load Current (FLC) | 3.7A |
| Cable Length | 1.8m |
| Max Flow | 3.4l/h |
| Max Head | 16bar |
| Material | PVC/G/FPM |
