Lowara SMB10/B/5SVE06F011/M2/UK - 6 Bar Variable Speed Booster Set 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Variable Speed Cold Water Booster Set.
e-SV series Vertical multistage pump with Permanent Magnet Motor IE5 efficiency class in order to offer higher efficiency and energy cost reduction fitted with e-SM Drive inverters. IES2 Efficiency power drive system. Pump complete with all components, fittings, Pressure Gauge, 16 Bar pressure transducer & 8 litre diaphragm tank, non-return valve, fitted to the delivery side of the set.
e-SM Inverter with THDI filters, Easy set up menu, 4-20ma or 0-10V external signal via BMS, BACnet and Modbus as standard, Large LED display screen, Built in protections: Over/Under voltage, Overcurrent/output short protection, Dry run protection, Motor over temperature, Inverter over temperature.
Technical Data
- Electrical Data
- Electric Supply Voltage 208 - 240/1/50Hz
- Rated Power (Per Pump) -n1.1 kW
- Total Electric Current 6.2 A
Pump Material
- Pump Body - Stainless Steel
- Pump Outer - Sleeve Stainless Steel
- Diffuser - Stainless Steel
- Impeller - Stainless Steel
- Shaft - Stainless Steel
- Mechanical Seal - Ceramic/Carbon/EPDM
- Non-Return Valves Brass
- Pressure Transducers AISI 304
- Pressure Gauge 10 Bar
- Terminal Box IP55 Protection
- Base Steel/Painted
| SKU | 1003100013 |
|---|---|
| Manufacturers | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 60.0 Kg |

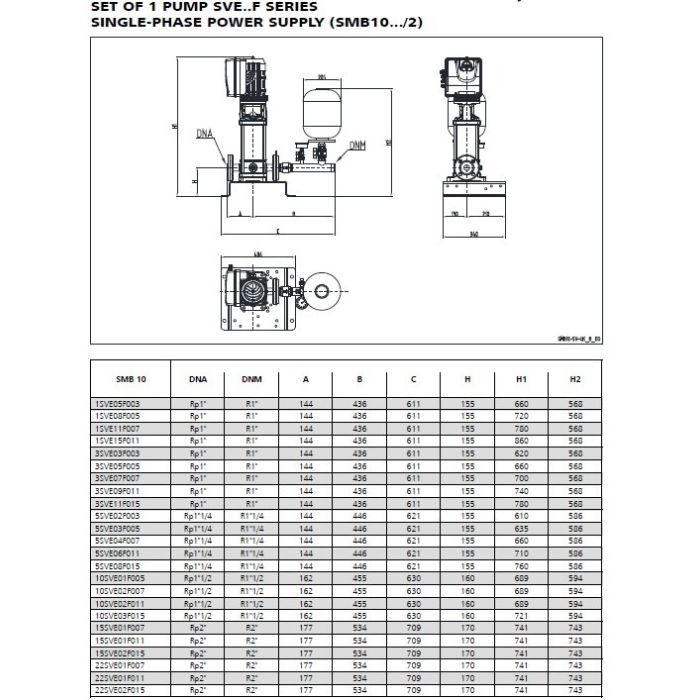

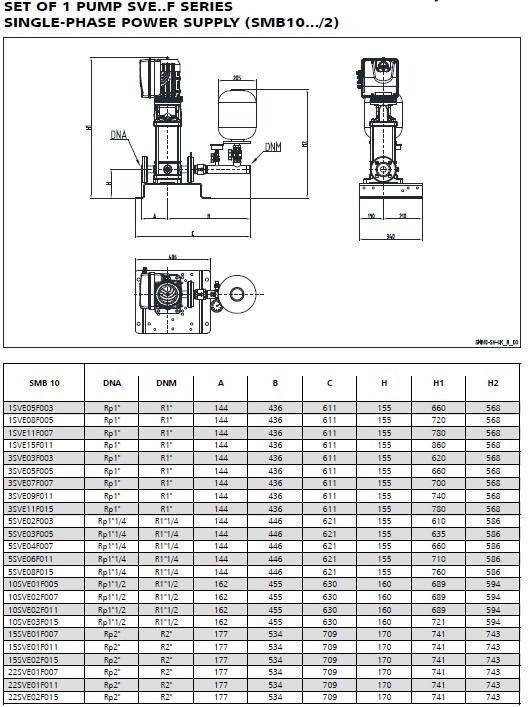

| Dimensions | 660 (W) x 340 (D) x 716 (H) |
| Connection Type | 1 1/4 Inch Flanged |
| Motor Size | 1.1kW |
| Full Load Current (FLC) | 6.2 A |
| Voltage | 240V 1Ph 50Hz |

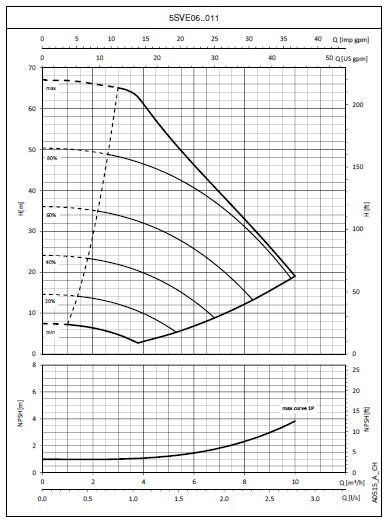

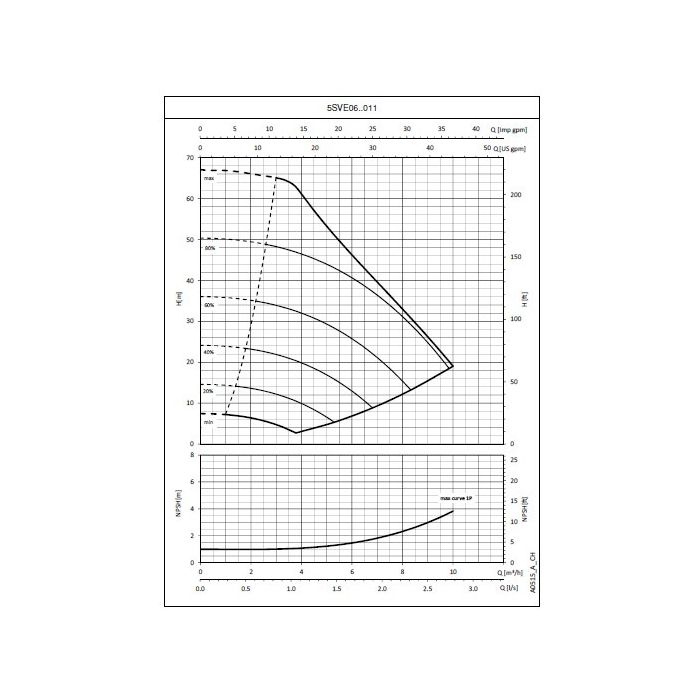

| Max Flow | 2.8 l/s |
| Max Head | 65 Metres |
| Max Pressure | 16 Bar |
| Max Temperature | 80°C |
| Material | Stainless Steel |
| Seal Type | Ceramic/Carbon/EPDM |
