Lowara SHOE4 32-160/05 Open Impeller Centrifugal Pump 415V

Name: Lowara SHOE4 32-160/05 Open Impeller Centrifugal Pump 415V
Brand: Lowara
SKU: 107510240
Price: 1793.4 GBP
Availability: InStock

SKU

107510240

MRRP £2,562.00 + VAT Our price £1,793.40 (+ VAT) Incl. VAT: £2152.08

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Lowara SHOE4 32-160/05 Open Impeller End Suction Centrifugal Booster Pump In 316 Stainless Steel With 4 Pole 0.55kW, 415V 3Ph 50Hz Motor.

Lowara SHO end suction, centrifugal pumps with open and recessed impeller are ideal for civil and industrial clean water applications. The pump bodies are made of pressed AISI 316 stainless steel with precision cast stainless steel impellers.

Overview features:

Delivery up to 56m3/hr
Head up to 50m
Power supply - 50/60Hz
Power - 0.37kW to 11kW
Max operating pressure - 12 bar
Temperature of pumped liquid: -10°C to +120°C
Insulation class: F
Protection: IP55
Open impeller pumps solids from 20mm to 40mm depending on the model
All SHO series are supplied with Silicon Carbide/FPM mechanical seals and FPM o'rings as standard
Models ending /P are fitted with the new PLM high efficiency motors

More Information
SKU	107510240
Manufacturers	Lowara
Manufacturers Warranty	2 Years
Weight	25.0 Kg

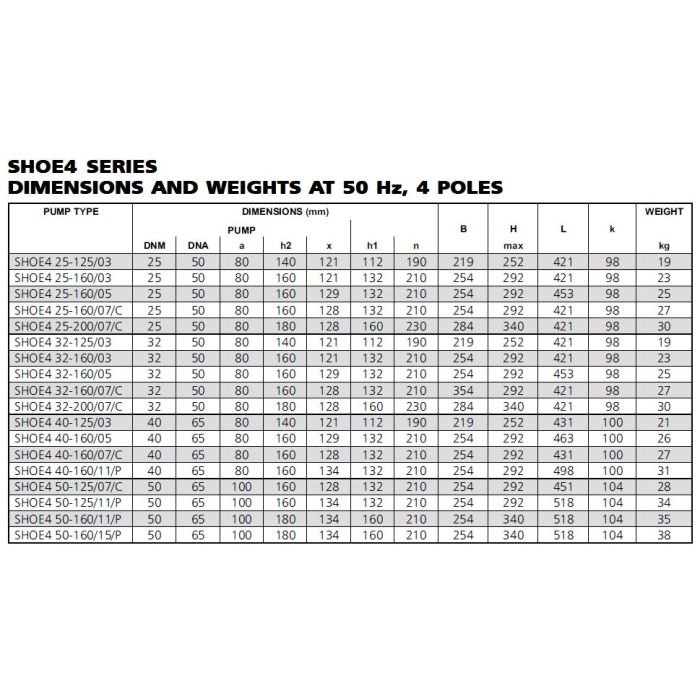

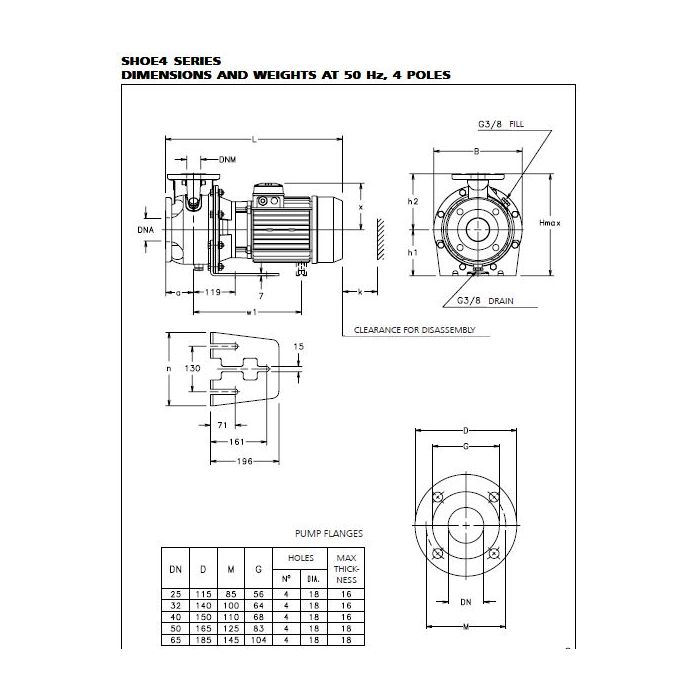

Dimensions	453mm (l) x 292mm (h) x 254mm (w)
Inlet Dimension	50mm Flanged
Discharge Dimension	32mm Flanged
Motor Size	0.55kW
Full Load Current (FLC)	1.75A
Voltage	415V 3Ph 50Hz

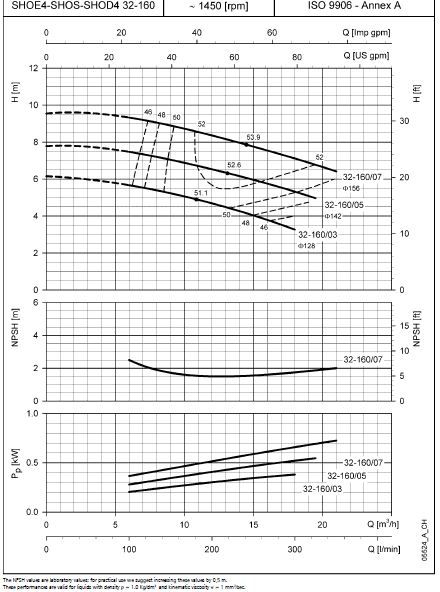

Max Flow	19.5m3/hr
Max Head	7.7m
Max Temperature	120°C
Material	Stainless Steel
Impeller Material	Stainless Steel
