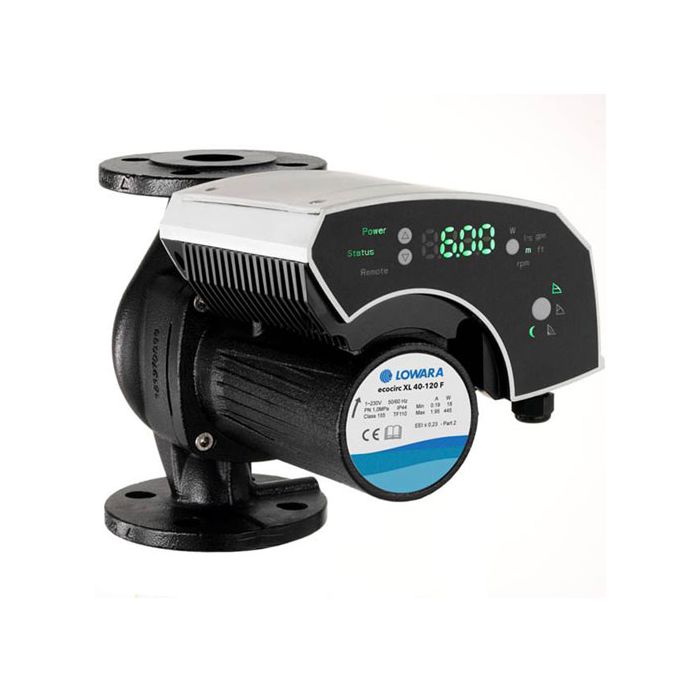

Lowara Ecocirc XL 40-120F (250) Variable Speed Circulator 240V - E503100AA

Please note, Lowara no longer manufacture the Ecocirc XL version. This is replaced with the Ecocirc XLPlus version. This will be provided as a free of charge upgrade.

The Ecocirc XL High efficiency single phase circulators for light commercial heating systems with electronically commutated permanent magnet technology.

Ecocirc XL and XLplus are designed for circulating liquids in the following systems:

Hot water heating systems
Air conditioning and cooling systems
Domestic hot water systems
Solar and Geothermal systems.

Pump features:

Constant pressure: the pump maintains constant pressure at any flow demand
Proportional pressure: pump pressure continuously adjusts based on flow demand
Constant speed: the pump maintains a fixed speed at any flow demand
Night mode: the pump reduces the power consumption at minimum when the heating load is not required (night-time)
Dry run protection
Air purge
Plug for 100W motor size
Reading and setting of the pump by digital display and human machine interface with push buttons
Insulation shell for heating systems for single head pumps
Constant temperature control (ecocirc XLplus only)
Differential temperature control (ecocirc XLplus only)
Additional automatic operating modes for twin head pumps including parallel and alternate operations (ecocirc XLplus only)
Integrated communication capabilities (Modbus and Bacnet) for ecocirc XLplus

More Information
SKU	E503100AA
Manufacturers	Lowara
Manufacturers Warranty	2 Years
Weight	14.9 Kg
Dimensions	250mm (h) x 338mm (d) x 206mm (w)
Motor Size	0.55kW
Full Load Current (FLC)	2.4A
Voltage	240V 1Ph 50Hz
Max Flow	7.3 l/sec
Max Head	12.0m
Material	Cast Iron
