Lowara Ecocirc Pro 15-1/110LBR 1 1/4" Bronze Circulator With Temp Control 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Lowara Ecocirc Pro 15-1/110LBR 1 1/4" Bronze Circulator With Temp Control 240v - 60A0L3002
The Lowara ecocirc PRO 15-1/110 Ris a single phase domestic circulator pump. The Lowara EcoCirc are a range of high efficiency domestic circulator pumps which can either be operated at a constant speed or can automatically adjust according to the demands of the system.
They are designed to be reliable, efficient and easy to install. The Lowara EcoCirc range also have the benefit of Anti-Block technology which prevents magnetite from entering the pump. This feature is highly effective in preventing blocking. Automatic air purge, tooless installation and dry running protection make this an ideal pump to save installers time and hassle..
Technical Data
Motor Type
- Shaftless spherical motor with highly efficient
- ECM permanent magnet technology
Max. Power Consumption
- PRO 15-1: 3-9 Watts
- PRO 15-1 R: 6 Watts
- PRO 15-1 RU: 8 Watts
- PRO 15-3: 4-27 Watts
Specifications
- Max. system pressure : 10 bar
- Electrical connection: 230 V, 50 Hz
- System temperature: +2 °C to +65 °C
- Setting range for electronic control thermostat (optional): 20-70 °C
- Protection type/Insulation class: IP 44/F
- Pump media: Domestic hot water
| SKU | 60A0L3002 |
|---|---|
| Manufacturers | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 1.1 Kg |

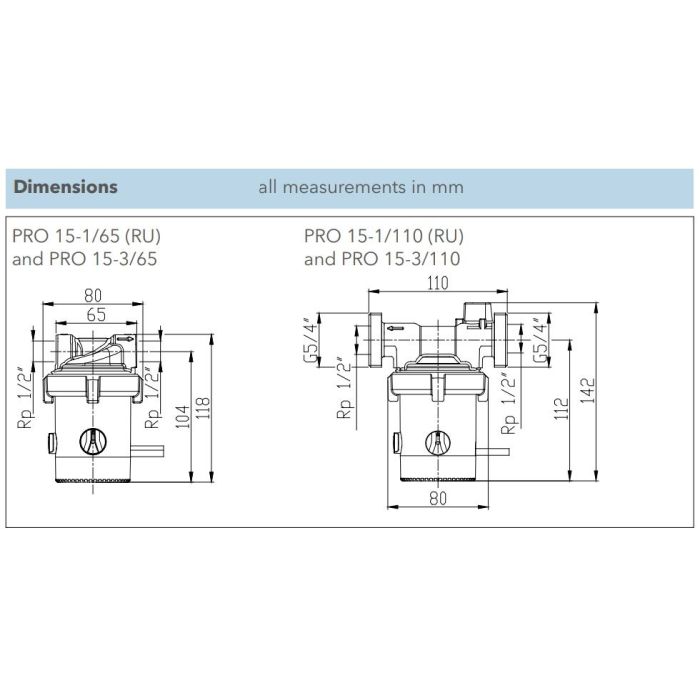

| Dimensions | 142mm (w) x 80mm (h) x 110mm (d) |
| Connection Type | 1 1/4 Inch BSP |
| Motor Size | 6W |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 1m3/hr |
| Max Head | 1m |
| Max Pressure | 10 Bar |
| Max Temperature | -10°C to 95°C |
| Material | Bronze |
