Lowara 5SC4/07/5 T L20 Submersible Borehole Pump without Floatswitch 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
- Water supply from primary water supply tanks or reservoirs, 6” wells, basins and watercourses.
- Sprinkler irrigation systems.
- Pressure boosting with pump directly inserted in tank or well.
- Rain water harvesting.
- Car washing system.
- Pressurization on board ship
- Air purification/humidafication systems
- Filtration systems
- Water recycling systems

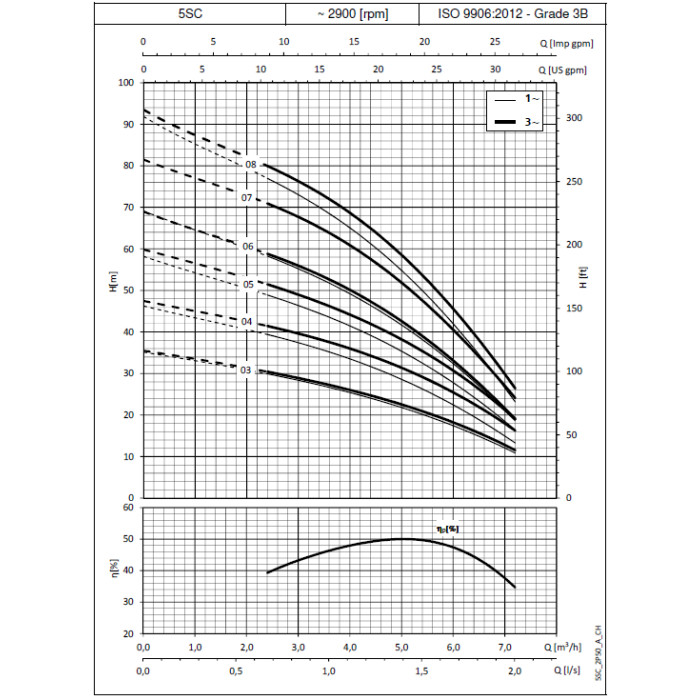

CHARACTERISTIC DATA:
- Delivery: up to 10,8 m3/h at 2850 rpm.
- Head: up to 100 m at 2850 rpm.
- Motor power: 0,55 to 2,2 kW.
- Maximum operating pressure: 10 bar.
- Single-phase version: 220-240 V, 50 Hz 2 poles (2850 rpm).
- With built-in automatic reset overload protection.
- Standard version with built-in capacitor, or external capacitor upon request
- Three-phase version: 380-415 V, 50 Hz 2 poles (2850 rpm).
- Overload protection to be provided by user and installed in the control panel.
| SKU | 107700655 |
|---|---|
| Manufacturers | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 16.0 Kg |

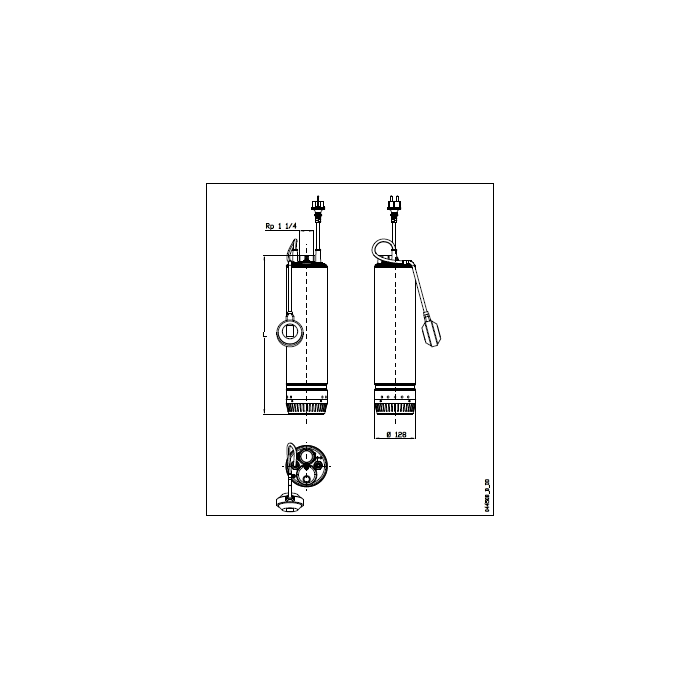

| Dimensions | 535mm high x 128mm diameter |
| Connection Type | 1 1/4 Inch BSP Female |
| Motor Size | 0.75 kW |
| Full Load Current (FLC) | 2.35 A |
| Voltage | 415V 3Ph 50Hz |
| Cable Length | 20 mtrs |
| Max Flow | 7.2 m3/hr |
| Max Head | 47 mtrs |
| Material | Stainless Steel |
| Impeller Material | Technopolymer |
