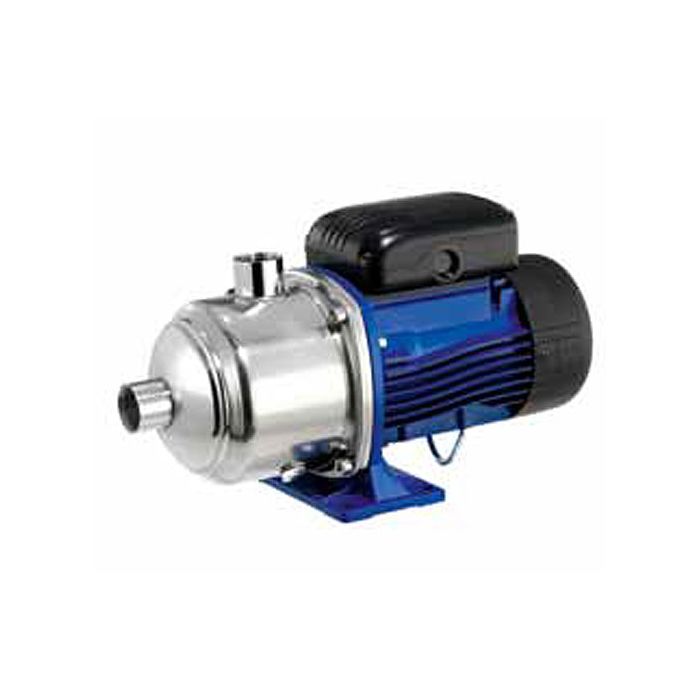

Lowara 5HM13S22M5HVBE (e-HM) Stainless Steel Horizontal Multi-Stage Pump 240V

Name: Lowara 5HM13S22M5HVBE (e-HM) Stainless Steel Horizontal Multi-Stage Pump 240V
Brand: Lowara
SKU: 104605861
Price: 1670.9 GBP
Availability: InStock

SKU

104605861

MRRP £2,387.00 + VAT Our price £1,670.90 (+ VAT) Incl. VAT: £2,005.08

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

The new Lowara e-HM range are threaded horizontal multi-stage pumps with IE3 motors (complying with regulation EC 640/2009 and are suitable for use in the following environments:

Pressure boosting and water supply systems (domestic and industrial)
Washing and cleaning industry including vehicles washing
Circulation of hot and cold liquids (like water, water and glycol) for heating, cooling and conditioning systems
Water treatment applications
Handling of moderately aggressive liquids
Food & beverage industries

The "e-HM" range consists of:

e-HM standard pump - on/off system
e-HM pump with pressure switch and pressure tank - on/off system
e-HM pump with Genyo - semi-constant pressure system
e-HM pump with Teknospeed (TKS) - constant pressure system with variable speed pump
e-HM residential pump sets (twin pumps)

Benefits include:

Lower energy bills
Long service life
Low noise level (even at peak performance)
No water hammer
Temperature control
Compact design

The e-HM...S range of horizontal multi-stage pumps have AISI 304 Stainless steel impellers, pump bodies and diffusers. They are available in 240V 1Ph 50Hz and 415V 3Ph 50Hz models. All pumps are WRAS approved.

More Information
SKU	104605861
Manufacturers	Lowara
Manufacturers Warranty	2 Years
Weight	27.0 Kg
Dimensions	249mm High x 146mm Wide x 706mm Deep
Motor Size	2.2kW
Full Load Current (FLC)	4.47A
Voltage	240V 1Ph 50Hz
Max Flow	2.5 l/sec
Max Head	98m
Material	Stainless Steel
