KSB AMA-Porter 502 ND Submersible Waste Water Pump without Floatswitch 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
KSB AMA-Porter 502 ND Submersible Waste Water Pump without Floatswitch 415v - 39017104
KSB's range of Ama-Porter floodable, vertical, single-stage submersible waste water pumps made of cast iron, for pumping a variety of applications consisting of waste water and sewage.
The Ama-Porter range have flanged connections and are available in 240V 1Ph 50Hz or 400/415V 3Ph 50Hz models and can be used for the following applications:
- pumping of waste water containing solid matter or domestic sewage from toilets, washing machines and dishwashers in intermittent operation
- surface water or rainwater pumping from car parks and uneven surfaces
- drainage of sumps and cellars liable to flooding
The AMA-Porter 500 series have 2" Flanged female discharge ports.
The AMA-Porter 600 series have 2 1/2" Flanged female discharge ports.
We strongly recommend that the Series 500 Portable Installation Kit is purchased with this Pump. The pump is shown with installation kit fitted, which comprises of hosetail, feet, elbow and fixings.
| SKU | 39017104 |
|---|---|
| Weight | 22.0 Kg |

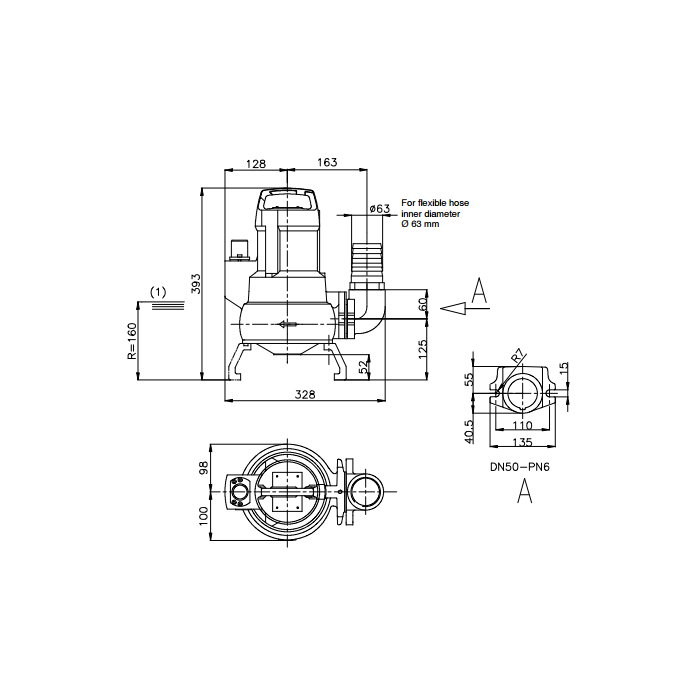

| Dimensions | 393mm High x 328mm Deep x 198mm Wide |
| Manufacturers | KSB |
| Manufacturers Warranty | 2 Years |
| Material | Cast Iron |
| Connection Type | 2 Inch Flanged Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 26 m3/hr |
| Max Head | 14m |
| Full Load Current (FLC) | 3.0A |
| Motor Size | 1.1kW |
| Cable Length | 10 Metres |
Delivery
We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted
Next day delivery is charged at £8.50 + vat for items under 35kgs. Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.
Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.
Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.
For Items over 35kgs, please review our delivery charges here
For full delivery terms please click here
International Delivery
Please click here to view International delivery rates.
If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.
Returns
Unused, unaltered items may be returned at the buyers expense for credit upon Online Pump Supplies prior written consent and upon the terms specified by Online Pump Supplies. The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Online Pump Supplies. Please click here to view Returns information.
File Downloads
