KSB AMA-Drainer N 303 SE/NE Submersible Dirty Water Pump 240V

Name: KSB AMA-Drainer N 303 SE/NE Submersible Dirty Water Pump 240V
Brand: KSB
SKU: 39300081
Price: 382 GBP
Availability: InStock

SKU

39300081

MRRP £640.59 + VAT Our price £382.00 (+ VAT) Incl. VAT: £458.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

KSB AMA-Drainer N 303 SE/NE Submersible Dirty Water Pump 240V - 39300081

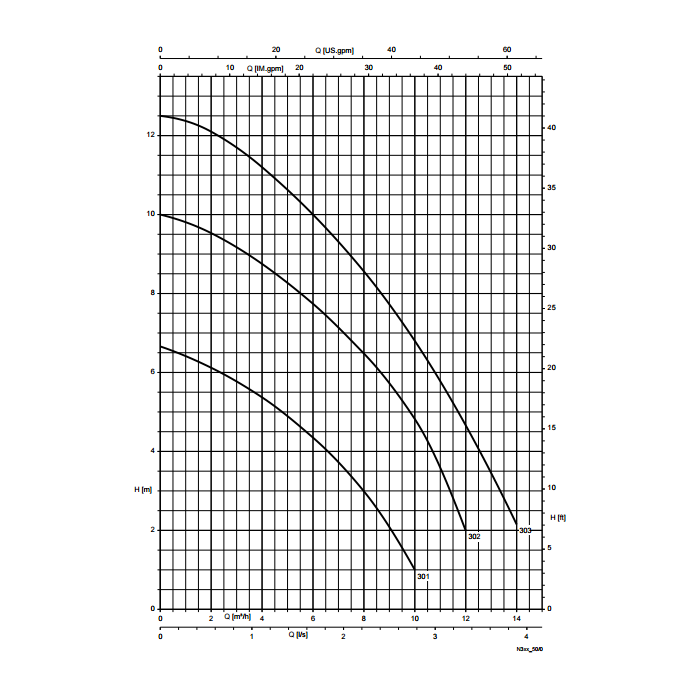

The KSB Ama-Drainer N 303 SE/NE (39300081) is a submersible pump capable of operating at an immersion depth of up to two metres. The Ama-Drainer N 303 SE/NE can handle waste water with dirt particles up to a particle size of 10 mm. The maximum flow rate is 14 cubic metres per hour, the max. head is 12.5 metres.

Fluids Handled:

faecal-free waste water
grey water
river, lake and groundwater

Applications:

drainage and lowering of surface water levels
extraction of water from rivers and reservoirs
automatic drainage of pits, shafts and cellars
drainage of underground passages
general drainage

Materials:

pump casing - Polypropylene, glass fibre reinforced (30%)
discharge casing - Polypropylene, glass fibre reinforced (30%)
casing cover - Noryl GNF3
impeller - Noryl GNF2
motor housing - Chrome nickel steel (1.4301)
float switch - Polypropylene

This pump has 1 1/4" BSP female discharge port and built in non-return valve.

More Information
SKU	39300081
Weight	7.4 Kg

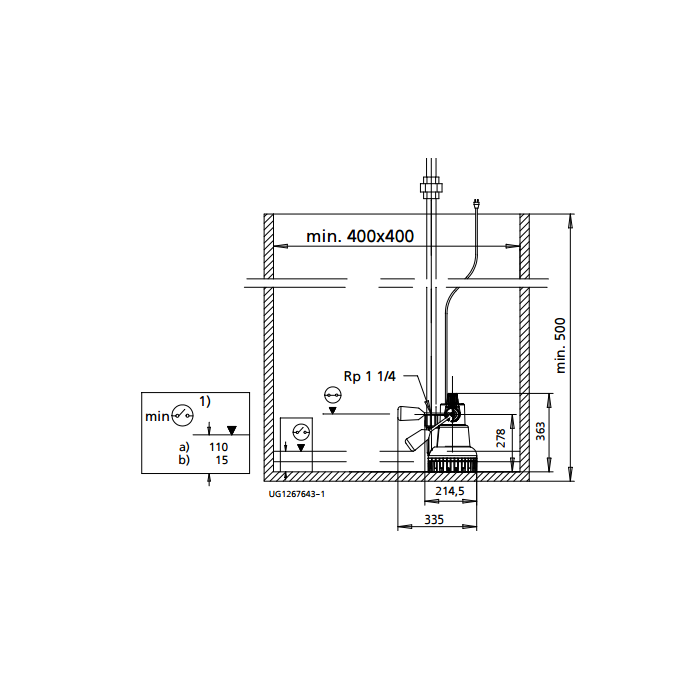

Dimensions	363mm High x 214mm Diameter
Manufacturers	KSB
Manufacturers Warranty	2 Years
Material	Plastic
Impeller Material	Noryl GNF2
Connection Type	1 1/4 Inch BSP Female
Voltage	240V 1Ph 50Hz
Max Flow	3.9 l/s
Max Head	12.5m
Full Load Current (FLC)	4.9A
Cable Length	10 Metres
Float Switch	Yes
