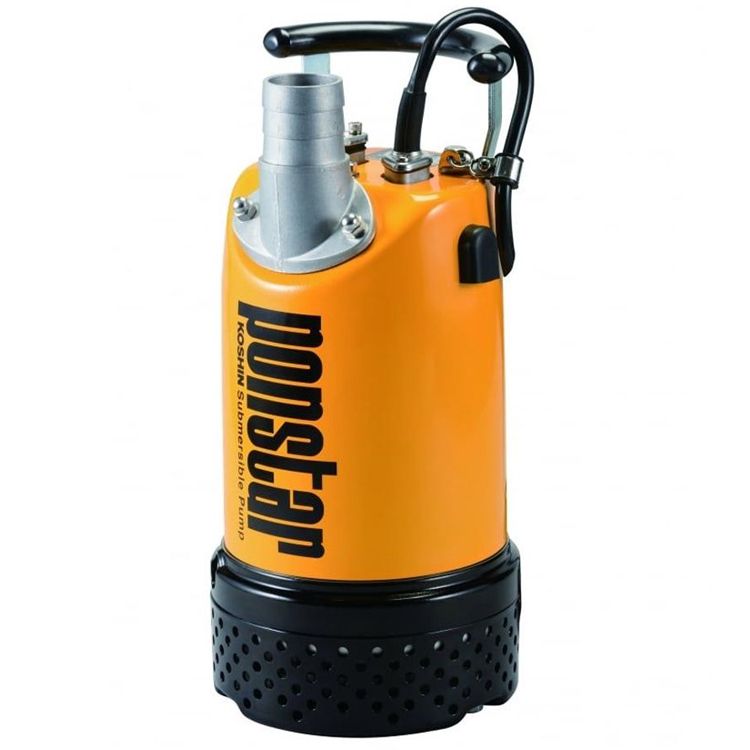

Koshin Ponstar PBX Heavy Duty Submersible Drainage Pump Without Float 230v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
New PBX, Heavy duty construction and unbeatable performance, suitable for dry running and for use with sandy water.
Capacitor start, induction run motor for extra starting torque. Designed so that the delivery flange can be altered from vertical to horizontal.
Optional extra float switch with an easy to retro fit or replace system. Twin mechanical seals in a lubricated chamber.
2” Female BSP outlet allowing cam fittings, lever couplings and hose tails to be easy fitted.
PBX dry run capability, when the pump is running dry the motor is cooled by air, forced through the pump by the impeller and exiting the pump via the air valve preventing the motor from overheating.
Complete with 10 metres of power cable and hose tail.
Features
- Due to its smart design and water flow been directed through the outer walls of the pump, motor cooling is efficient and self-fulfilling. Because of this, the pumps design is small and can be effectively installed, even when space is limited.
- The Pump is lightweight & easy to handle
- Thanks to the double mechanical seal employed for the shaft, and the SIC at the bottom, the shaft hardly wears out and can be used over a long period of time.
- Liquid paraffin is used in the shaft seal, therefore water will not be contaminated even in case of oil leakage
Applications
Ponstar PB Pump. Ideal for...
- Draining at Engineering & Construction sites.
- Draining at Office Buildings, Factories, warehouses, basements, etc.
- Water Supply & Draining at Farms, Gardens, various raising Farms.
- Water supply & Draining at Homes.
| SKU | 040-620 |
|---|---|
| Weight | 16.0 Kg |
| Dimensions | 415mm (h) x 195mm (w) x 195mm (l) |
| Manufacturers | Koshin |
| Manufacturers Warranty | 1 Year |
| Material | Alloy |
| Connection Type | 2" Hosetail Outlet |
| Voltage | 240V 1Ph 50Hz |

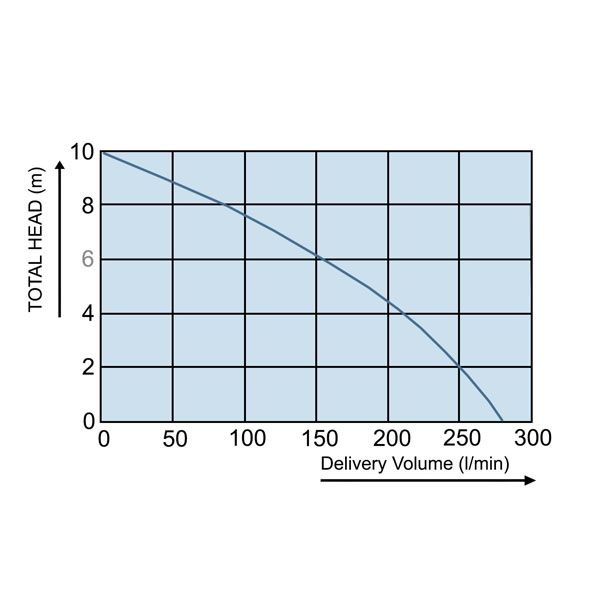

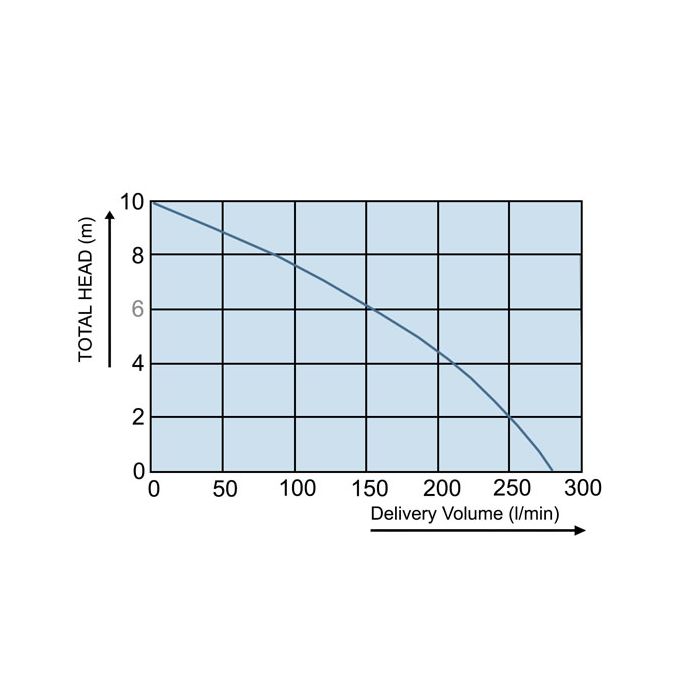

| Max Flow | 290 l/m |
| Max Head | 10 Metres |
| Full Load Current (FLC) | 4.2A |
| Motor Size | 0.6kW |
| Cable Length | 10 Metres |
