JP4-54 Vertical Tank Self Priming Booster Set 240v

JP 4-54 PT-V BBVP

BE ADVISED - THIS PRODUCT IS DISPATCHED AS AN ASSEMBLY KIT FOR THE CUSTOMER TO BUILD UPON DELIVERY

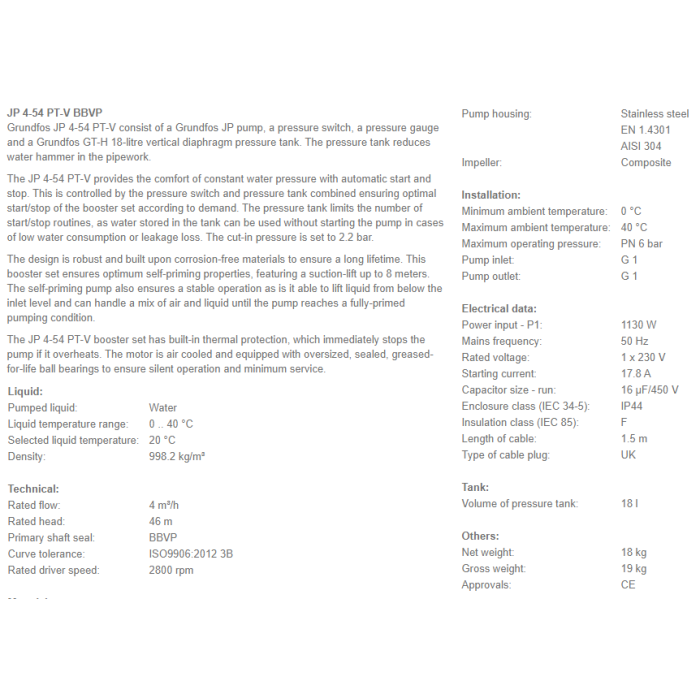

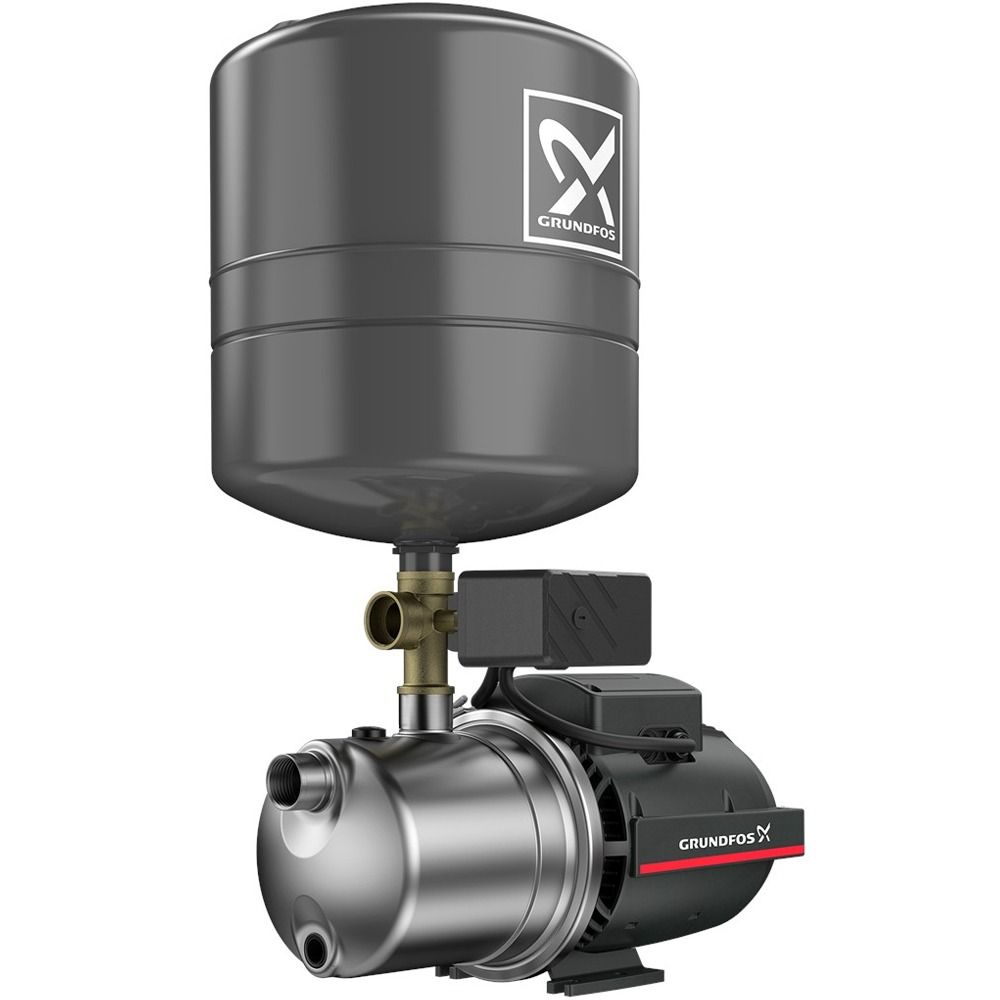

Grundfos JP 4-54 PT-V consist of a Grundfos JP Self Priming pump, a pressure switch, a pressure gauge and a GT-H 18-litre vertical diaphragm pressure tank. The pressure tank reduces water hammer in the pipework.

The JP 4-54 PT-V provides the comfort of constant water pressure with automatic start and stop. This is controlled by the pressure switch and pressure tank combined ensuring optimal start/stop of the booster set according to demand. The pressure tank limits the number of start/stop routines, as water stored in the tank can be used without starting the pump in cases of low water consumption or leakage loss. The cut-in pressure is set to 2.2 bar.

The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction-lift up to 8 meters. The self-priming pump also ensures a stable operation as is it able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches a fully-primed pumping condition.

The JP 4-54 PT-V booster set has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.

**Please note that these units are not provided with a Non-Return Valve. A Non-Return Valve Kit must be purchased and fitted in order for any warranty claims to be upheld. Any JP4 Booster Sets that are fitted with no non return valve will void the warranty.**
